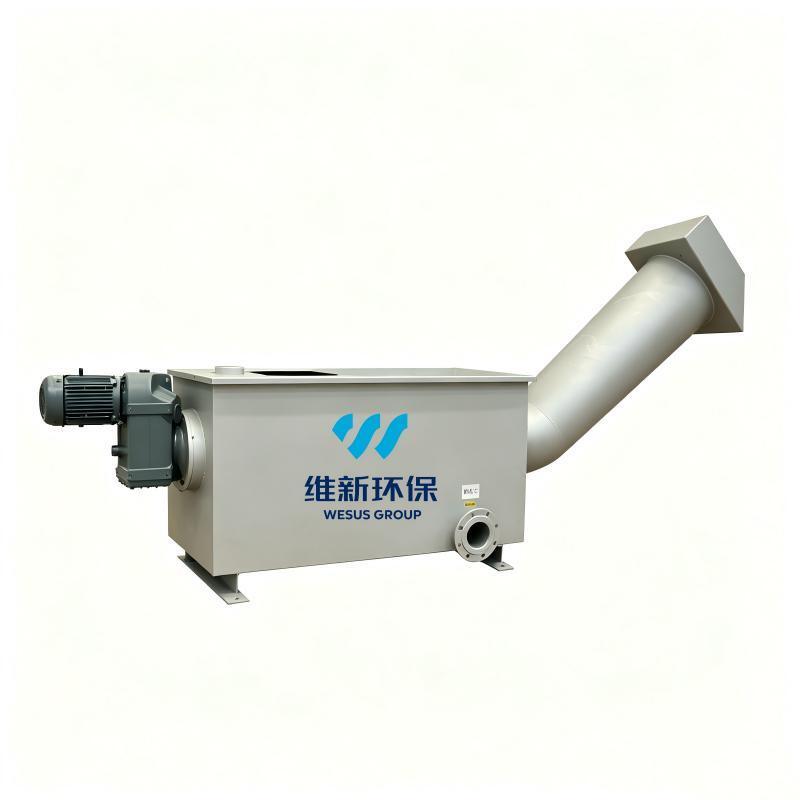

Heavy-duty GLSY High-Drainage Screw Press for Continuous Grid Slag Squeezing
  • Heavy-duty GLSY High-Drainage Screw Press for Continuous Grid Slag Squeezing

Heavy-duty GLSY High-Drainage Screw Press for Continuous Grid Slag Squeezing

Place of Origin CHINA
Brand Name WESUS
Certification ISO
Model Number Solid-liquid Separation & Dewatering Equipment
Product Details
Screw Outer Diameter:
200/260/300mm
Screw Rotation Speed:
5–10r/min
Treatment Capacity:
1–3 / 5–6 / 6–9m³/h
Inlet Moisture Content:
85–95%
Outlet Moisture Content:
40–45%
Motor Power:
1.5 / 2.2 / 2.2kW
Highlight:

heavy-duty screw press for slag squeezing

,

high-drainage screw press for grid slag

,

continuous waste water screw press

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Export Packing
Delivery Time
30 Days
Payment Terms
L/C,T/T
Supply Ability
2000sets/year
Product Description

Heavy-duty GLSY High-Drainage Screw Press for Continuous Grid Slag Squeezing


Brief Description

Heavy-duty GLSY high-drainage screw press adopts high-rigidity steel screw to resist deformation under long-time continuous operation. It dewaters wet grid slag from bar screen and achieves stable solid-liquid separation.



Product Overview

GLSY heavy-duty high-drainage screw press is applied for grid slag squeezing. It connects to coarse and fine screen discharge ports to receive wet grid slag. Materials are squeezed and dewatered, separated water flows out from bottom drainage tank, dewatered slag is discharged for outward transportation.

Heavy-duty GLSY High-Drainage Screw Press for Continuous Grid Slag Squeezing


Product Parameters

Item

GLSY-260

GLSY-300

GLSY-360

Screw Outer Diameter

200 mm

260 mm

300 mm

Screw Rotation Speed

5–10 r/min

5–10 r/min

5–10 r/min

Treatment Capacity

1–3 m³/h

5–6 m³/h

6–9 m³/h

Inlet Moisture Content

85–95%

85–95%

85–95%

Outlet Moisture Content

40–45%

40–45%

40–45%

Motor Power

1.5 kW

2.2 kW

2.2 kW

Overall Length L

1500 mm

1500 mm

1800 mm

Dimension B

219 mm

273 mm

325 mm

Heavy-duty GLSY High-Drainage Screw Press for Continuous Grid Slag Squeezing


Working Principle

The machine consists of drainage zone, feeding zone, screw conveying zone and discharging zone. Grid slag enters feeding chamber and is transported and compressed by screw. Filtrate passes through slotted bars into water collection tank. Pressure rises along screw conveying path. The screw is made of high-strength steel to guarantee rigidity and non-deformation even for high-moisture slag. Flushing device cleans dewatering segment automatically.


Key Design & Performance Features

1.High strength steel screw with good rigidity, non-deformation under heavy load.

2.Suitable for continuous long-hour operation.

3.Effective squeezing, stably reduce slag moisture to 40–45%.

4.Self-cleaning flushing assembly reduces clogging risk.

5.Low rotating speed, less abrasion and longer service life.

 Heavy-duty GLSY High-Drainage Screw Press for Continuous Grid Slag Squeezing

Heavy-duty GLSY High-Drainage Screw Press for Continuous Grid Slag Squeezing


Applications

Medium & large wastewater treatment plants, continuous grid slag dewatering, long-running sewage treatment facilities.
