Brief Description

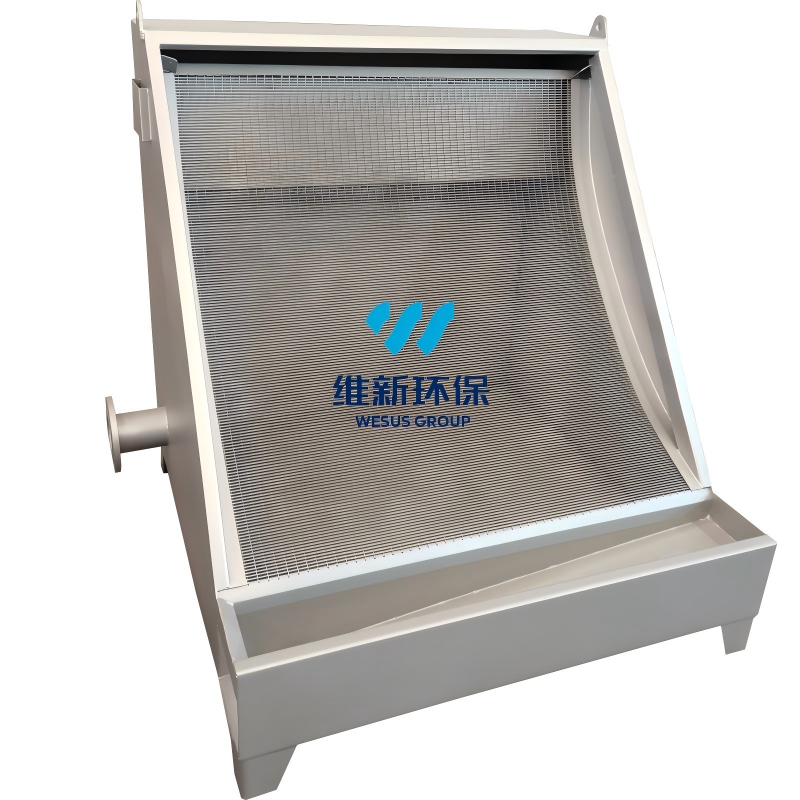

The static screen is a non‑power solid‑liquid separation device that relies on water flow gravity. It is widely applied in the pre‑treatment stage of industrial wastewater and municipal sewage to intercept and recover suspended solids, floating matters and settleable solids. Featuring no moving components, zero driving energy consumption, simple structure and low maintenance requirement, it is suitable for treatment scenarios with medium‑or‑below water volume and available gravity drop for incoming water.

Product Overview

Within the sewage treatment process chain, the static screen is generally installed after the coarse and intermediate bar screens and before the regulating tank or hydrolytic‑acidification tank. It performs interception functions equivalent to fine‑to‑ultra‑fine screens, effectively lowering the influent suspended solid concentration and mitigating clogging risks of subsequent structures and water distribution equipment.

Product Parameters

Working Principle

1.Water distribution: Wastewater to be treated flows through the inlet pipe into the top water‑distribution tank (overflow weir). It overflows through the weir opening and spreads evenly across the full width of the sieve surface in the form of a thin water film, ensuring the full effective sieve width participates in water passing.

2.Sieving: The sieve surface is precision‑welded with wedge‑shaped screen bars (V‑profile stainless steel wires). Wastewater flows tangentially in a thin layer adhering to the sieve surface. Under gravity and hydraulic shear force, water and particles smaller than the sieve slots pass through the gaps and get discharged, while solid particles larger than the slots are trapped on the sieve surface.

3.Slag discharge: Trapped solids slide down the inclined or curved sieve surface into the bottom slag‑discharge hopper under the continuous thrust of incoming flow and self‑weight, achieving continuous automatic slag removal.

Key Design & Performance Features

1.Low energy consumption: The main sieving body requires no driving power. Only auxiliary accessories such as flushing devices and screw slag dischargers consume a small amount of electricity.

2.Clogging resistance: Wedge‑shaped sieve slots combined with water‑film scouring enable self‑cleaning. Adhered contaminants can be removed by low‑pressure flushing.

3.Easy operation and maintenance: There are no rotating vulnerable parts. Only periodic flushing and inspection of screen bars are needed. Sieve surface modules can be replaced individually without disassembling the whole unit.

4.Operating Limitations: A gravity inflow head is required. It is suitable for wastewater containing coarse suspended particles, but not applicable for colloidal micro‑fine wastewater or direct sludge dewatering.

Applications

Pre‑treatment of wastewater from beer and malt production, Baijiu and alcohol fermentation, slaughtering and meat processing, food processing, sugar manufacturing, papermaking (white‑water fibre recovery), textile printing and dyeing, leather‑making, livestock and poultry farming, as well as municipal sewage pre‑treatment.
