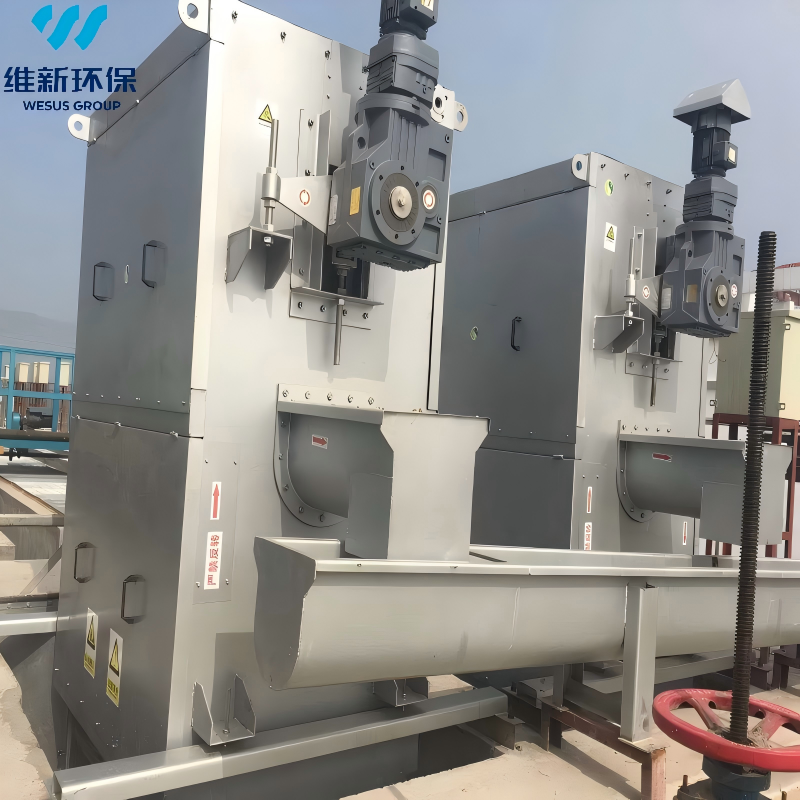

NJL Internally Fed Perforated Plate Screen for Wastewater Treatment
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | ISO |
| Model Number | Mechanical Bar Screen |
internally fed perforated plate screen
,perforated plate screen for wastewater
,internally fed drum screen
NJL Internally Fed Perforated Plate Screen for Wastewater Treatment
Brief Description
The NJL Internally Fed Perforated Plate Screen is designed for solid removal in municipal wastewater, industrial wastewater, and water intake applications. Its internally fed structure and moving perforated plates help capture suspended solids, fibers, hair, and other debris before the water enters downstream treatment processes.
Product Overview
The NJL screen is a mechanical screening solution for wastewater pretreatment and water intake systems. It features an internal inlet and perforated screen plates arranged on both sides of the machine.
Wastewater enters through the lower inlet and passes outward through the screen plates. Solid materials are retained on the plate surfaces, while screened water flows into the downstream channel. The moving plate system transports the captured screenings upward for removal.
The equipment is suitable for municipal sewage treatment, water supply facilities, and industrial wastewater applications, including paper manufacturing, food processing, and slaughterhouse wastewater treatment.
Product Parameters
|
Technical Parameter |
Specification |
|
Screen Aperture |
Φ1, 2, 3, 4, 5, 6 mm |
|
Separation Efficiency |
81%–97% |
|
Motor Power |
1.1–3 kW |
|
Channel Width (B) |
900–2500 mm |
|
Equipment Width (B1) |
800–1200 mm |
|
Channel Depth (H1) |
1.2–3.0 m |
|
Equipment Length (L) |
950–3000 mm |
|
Maximum Medium Temperature |
0–60℃ |
|
Height from Foundation to Discharge Outlet (H2) |
Customizable; 1000 mm for standard model |
|
Flushing Water Pressure |
Above 4 bar |
|
Main Body Material |
Stainless Steel 304 |
|
Screen Plate Width (m) |
Screen Aperture (mm) |
Water Level Depth (m) |
0.6 m/s |
0.7 m/s |
0.8 m/s |
0.9 m/s |
1.0 m/s |
Remarks |
|
1 |
Φ1 |
1 |
0.066 |
0.077 |
0.088 |
0.099 |
0.11 |
With rotary brush cleaning |
|
1 |
Φ2 |
1 |
0.114 |
0.133 |
0.152 |
0.171 |
0.19 |
With rotary brush cleaning |
|
1 |
Φ3 |
1 |
0.132 |
0.154 |
0.176 |
0.198 |
0.22 |
— |
|
1 |
Φ3 |
1 |
0.192 |
0.240 |
0.256 |
0.288 |
0.32 |
— |
|
1 |
Φ4 |
1 |
0.180 |
0.210 |
0.240 |
0.270 |
0.30 |
With rotary brush cleaning |
|
1 |
Φ4 |
1 |
0.240 |
0.280 |
0.320 |
0.360 |
0.40 |
— |
|
1 |
Φ5 |
1 |
0.216 |
0.252 |
0.288 |
0.324 |
0.36 |
With rotary brush cleaning |
|
1 |
Φ5 |
1 |
0.276 |
0.322 |
0.368 |
0.414 |
0.46 |
— |
|
1 |
Φ6 |
1 |
0.300 |
0.350 |
0.400 |
0.450 |
0.50 |
— |
|
1 |
Φ8 |
1 |
0.288 |
0.336 |
0.384 |
0.432 |
0.48 |
— |
|
1 |
Φ10 |
1 |
0.318 |
0.371 |
0.424 |
0.477 |
0.53 |
— |
Working Principle
Wastewater enters the lower inlet of the machine and flows through the perforated plates on both sides. Suspended solids and other debris are retained on the screening surfaces.
The motor-driven chain system moves the plates upward, carrying the collected screenings to the upper section. As the plates pass around the upper sprockets, the flushing system removes the accumulated debris. The screenings and flushing water enter the collection trough and are discharged from the machine.
Key Design & Performance Features
1. Internally Fed Configuration
Directs incoming wastewater through the screening surfaces on both sides of the machine.
2. Continuous Screening Operation
The moving plate system transports captured solids toward the discharge section.
3. Perforated Plate Design
Supports the interception of various solid materials, including fibers and flat debris.
4. Compact Vertical Installation
Helps reduce the equipment footprint.
5. Integrated Flushing System
Assists in removing screenings from the plates.
6. Replaceable Screen Plates
The insert-mounted design facilitates maintenance and replacement.
7. Project-Based Configuration
Dimensions and installation details can be adapted to site conditions.
Applications
1. Municipal wastewater treatment plants
2. Water supply and intake facilities
3. Industrial wastewater treatment
4. Paper and pulp industry wastewater
5. Food processing wastewater
6. Slaughterhouse wastewater
