Continuous Internally Fed Drum Screen Low And Stable Noise High Adaptability

Continuous Operation Internally Fed Drum Screen Low and Stable Noise High Adaptability

Brief Description

The built-in drum screen boasts excellent environmental adaptability, maintaining stable operation even under complex working conditions. Its low-noise design enhances operator comfort, while continuous operation ensures uninterrupted production. Its modular construction facilitates integration into existing production lines, making it suitable for various industrial applications such as mining, metallurgy, and solid waste treatment.

Product Overview

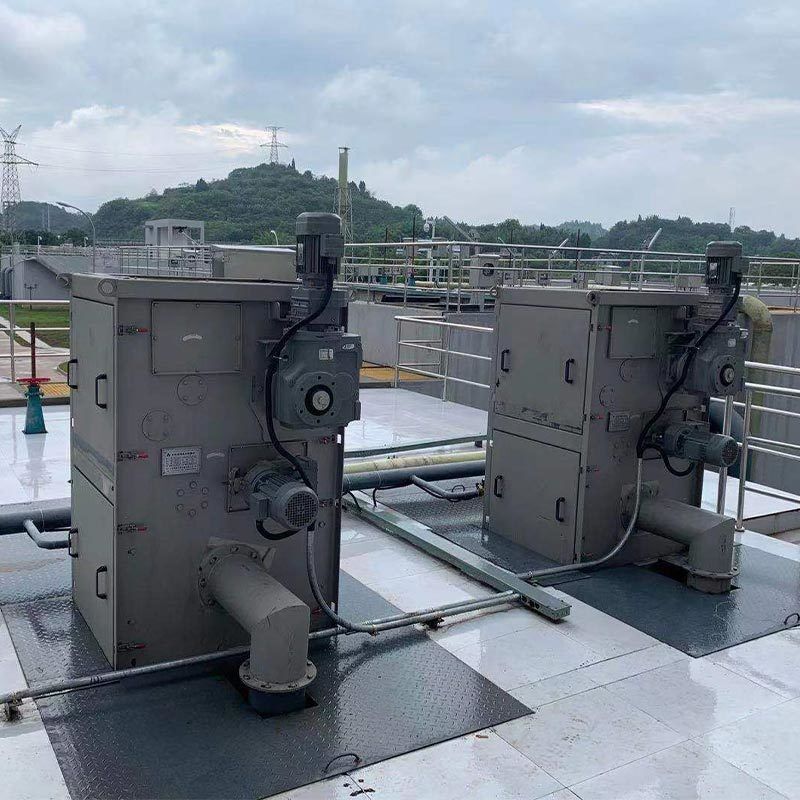

Our In-Channel Fine Screen, also called an Internally Fed Drum Screen, combines high throughput efficiency with a space-saving compact design for modern municipal and industrial wastewater treatment. Optimized for deep channels and space-limited installations, it achieves exceptional removal of fine solids, fibers, and suspended contaminants with low energy consumption. Its reliable fine screening performance offers reliable protection for key downstream processes such as MBR, UV disinfection, and membrane filtration systems, enhancing overall treatment efficiency and extending service life of process equipment.

Working Principle

Screening begins as process water enters the unit laterally and distributes evenly inside the revolving drum basket. Wastewater permeates the fine screening surface with 0.5–6 mm gaps, leaving solids retained internally. The combination of internal hydraulic flow and drum rotation elevates the captured materials to the cleaning zone. Filtered effluent or clean water is sprayed through dedicated nozzles to dislodge solids into a central collection trough, which is then evacuated by a screw conveyor or equivalent discharge system. The polished filtrate is discharged through the open outlet end of the drum.

Product Parameters

Key Design & Performance Features

*Compact, Space-Saving Design: The entire unit is installed directly within the channel, requiring minimal civil works and no additional footprint outside the channel. This makes it ideal for plant upgrades or locations with severe space limitations.
*Superior Fine Screening Efficiency: With screen apertures as fine as 0.5 mm, it achieves high removal rates of fine solids, hairs, fibers, and other small debris that traditional bar screens miss, significantly improving downstream process performance.
*Gentle Yet Effective Cleaning: The internally fed design and pressurized spray wash ensure thorough cleaning of the screen panels without aggressive brushing, reducing wear and tear and preventing blinding for consistent flow.
*Low Hydraulic Head Loss: The optimized flow path and large screening surface area result in very low head loss through the unit, saving energy on upstream pumping.
*Robust & Corrosion-Resistant Construction: Key components like the drum screen panels, main shaft, and collection trough are manufactured from high-grade stainless steel (e.g., SS304, SS316) for maximum durability in corrosive wastewater environments.
*Fully Automated & Intelligent Operation: Features a programmable logic controller (PLC) for fully automatic operation. It can integrate with plant-wide control systems and includes alarms for high differential pressure, ensuring reliable, hands-off performance.

Applications

*Municipal Wastewater Treatment: Delivers reliable fine screening as a front‑end process for MBR, UV disinfection, and tertiary filtration systems.
*Industrial Process Protection: Provides effective pretreatment in food, pulp and paper, and textile industries to capture fibers and particulates.
*Combined Sewer Overflow Control: Removes fine contaminants from CSO and stormwater to reduce environmental impact.
*Water Reuse & Recycling: Performs critical pre-filtration to support the production of high-grade reusable water.

Company Profile

WESUS is a leading manufacturer and total solution provider for advanced sewage and sludge treatment systems. Founded in Yixing, China in 2013, we offer reliable, cost-effective equipment and engineering services to global clients. Certified with ISO 9001, ISO 14001 and ISO 45001, we possess strong in-house R&D and manufacturing capabilities supported by a large production base, a professional technical team, patents and university cooperation. Our comprehensive product range includes screening, filtration, sludge dewatering, mixing, aeration and customized solutions. With end-to-end services from design to after-sales support and proven global project experience, we have earned wide recognition including national high-tech enterprise and 5-star after-sales certifications. Adhering to the philosophy of real innovation, excellence and win-win cooperation, WESUS is committed to providing smart, sustainable water treatment solutions for municipal and industrial clients worldwide.

FAQ
Q1: Are you a direct manufacturer? What certifications do you hold?
A: We are a direct manufacturer with our own production facilities and R&D team. We maintain full control over quality, cost, and delivery, and hold certifications including ISO 9001/14001 for our core products.

Q2: What types of collaboration models do you offer?
A: We provide flexible solutions:
- Equipment Supply: Standalone or packaged systems.
- Turnkey Solutions (EPC): Design, procurement, construction, and commissioning.
- Technical Cooperation: Process upgrades, operational maintenance support, and technical consulting.

Q3: How is after-sales service and support ensured?
A: We provide full lifecycle support:
- Warranty: 12–24 months on core equipment.
- Response: 7x24 remote support with fast on-site assistance when needed.
- Spare Parts: Genuine parts are stocked for long-term supply security.
- Maintenance: Annual Maintenance Contracts (AMC) are available to ensure long-term system efficiency.

Q4: What is your typical project execution process?
A: Our standardized workflow ensures efficiency and transparency:
1. Requirement Analysis → 2. Proposal & Quotation → 3. Design Finalization → 4. Production & Factory Testing → 5. Shipping & Installation → 6. Commissioning & Training → 7. After-sales Service.
Customer involvement is encouraged at key milestones.

Q5: Can you provide references or case studies?
A: We have extensive global project experience across municipal and various industrial sectors. We can provide detailed, anonymized case studies and client references upon request.

Q6: What are your payment terms and delivery lead times?
A: - Payment: We accept T/T and L/C, with standard industry progress payment terms.
- Lead Time: Standard equipment: 4–8 weeks.  Large custom projects: 12–20 weeks.
A clear production schedule is provided upon contract signing.

Q7: How do you serve international clients?
A: We are experienced in international projects, arranging complete logistics (FOB, CIF, DDP, etc.) and providing full customs documentation. Our designs pre-consider compliance requirements in target markets.

Q8: Can you upgrade or retrofit existing systems?
A: Yes. We specialize in evaluating existing facilities and providing customized retrofit and expansion solutions to enhance performance and capacity with minimal investment and downtime.

Q9: How can we start a consultation?
A: Please contact our Sales Engineering team. To facilitate an efficient discussion, please have your treatment requirements, water quality data, and site information ready. We will provide a preliminary proposal and professional advice.
