Stable And Reliable Fine Step Screen Wastewater Treatment Precise Screening Structured And Meticulous

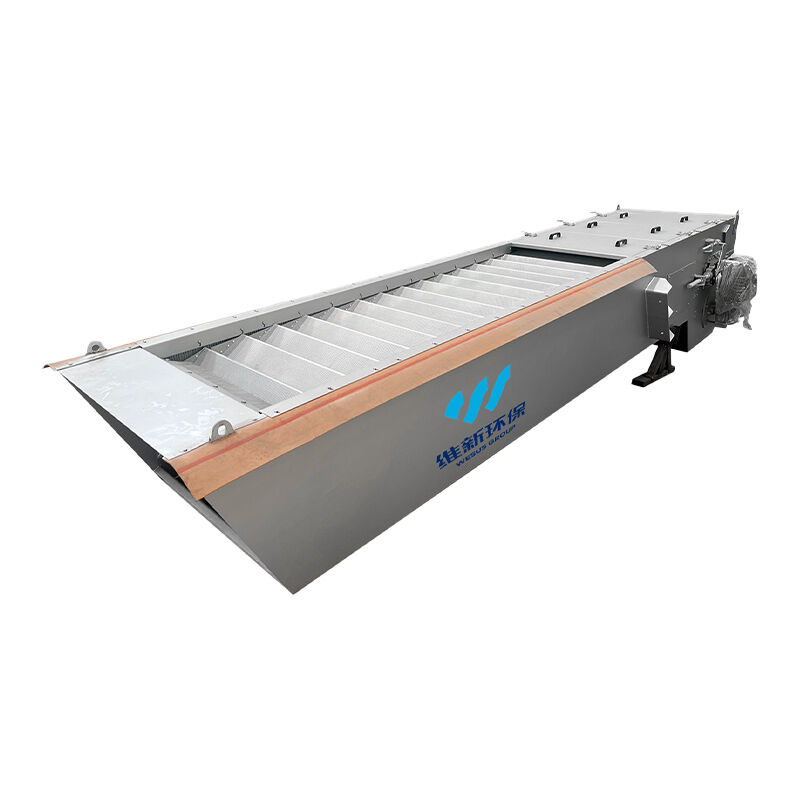

Stable and Reliable Step-Type Fine Screen Precise Screening Structured and Meticulous

Brief Description

Designed for continuous industrial operations, this screen integrates precision manufacturing processes and optimized flow channel design to ensure uniform material distribution and efficient grading during the screening process. The equipment operates quietly and smoothly with a low failure rate, maintaining consistent screening performance over extended periods. Suitable for industries with stringent particle size control requirements, such as metallurgy, ceramics, and recycling.

Product Overview

Our step-type fine screen marks a revolutionary leap in precision screening solutions. Adopting an innovative stepped overlapping sieve plate structure, it boasts exceptional efficiency in separating fine suspended solids, fibrous impurities and sundries from wastewater. Designed with energy-saving operation and low failure rate in mind, it serves as the optimal selection for municipal sewage treatment and industrial processing facilities, perfectly meeting the high-standard pretreatment demands before MBR systems, UV disinfection and water recycling projects.

Working Principle

In contrast to traditional screening equipment, our step-type fine screen is equipped with two groups of staggered and overlapping screen plates with unique step profiles, which carry out independent reciprocating stepping movements respectively.
*Filtration: Wastewater passes through the accurately designed gaps between the fixed and movable plates to complete solid-liquid separation.
*Lifting & Removal: The movable plates gently lift the intercepted impurities upward step by step.
*Discharge: Solids are automatically discharged into the collecting tank at the top, and the cleaned plates return to the filtering area.
This uninterrupted self-cleaning operation effectively avoids blockage and screen blinding, maintaining stable handling capacity and operating efficiency at all times.

Product Parameters

Key Design & Performance Features

*Unmatched Clog Resistance: The unique stepping motion and self-cleaning design virtually eliminate clogging and hairpinning—common failures in drum or rake screens. This ensures 24/7 uninterrupted operation, even with challenging, fibrous materials.
*Exceptionally High Filtration Efficiency: Available with fine apertures from 1 mm to 6 mm, it achieves superior capture rates for fine solids, fibers, plastics, and hair, providing optimal protection for downstream equipment.
*Proven Durability & Low Maintenance: Constructed with high-grade stainless steel (SS 304/316) for all critical components. The simple, robust mechanical design has fewer wear parts than competitors, translating to dramatically lower life cycle costs and less downtime.
*Hydraulically Efficient & Compact: The vertical or inclined installation offers a large screening area within a small footprint, resulting in very low head loss and significant energy savings for pumping stations.
*Hygienic & Odor-Free Operation: The complete discharge of solids and absence of stagnant areas or internal dead zones prevent putrefaction and odor generation, making it perfect for food & beverage and pharmaceutical applications.

Applications

*Municipal Wastewater Treatment Plants: Provides dependable fine screening at plant headworks, delivers ideal pretreatment for MBR systems, and supports efficient tertiary treatment processes.
*Food & Beverage Sector: Efficiently separates organic fibers, fruit and vegetable peels, packaging debris and other solid contaminants.
*Pulp & Paper Industry: Excels in capturing fine fibrous materials for resource recovery while optimizing process water quality.
*Pumping Stations: Offers robust protection against clogging in stormwater drainage and combined sewer overflow systems.
*General Industrial Pretreatment: Serves as a critical pretreatment solution for automotive, textile, chemical and various manufacturing industries.

Company Profile

WESUS is a leading manufacturer and total solution provider for advanced sewage and sludge treatment systems. Founded in Yixing, China in 2013, we offer reliable, cost-effective equipment and engineering services to global clients. Certified with ISO 9001, ISO 14001 and ISO 45001, we possess strong in-house R&D and manufacturing capabilities supported by a large production base, a professional technical team, patents and university cooperation. Our comprehensive product range includes screening, filtration, sludge dewatering, mixing, aeration and customized solutions. With end-to-end services from design to after-sales support and proven global project experience, we have earned wide recognition including national high-tech enterprise and 5-star after-sales certifications. Adhering to the philosophy of real innovation, excellence and win-win cooperation, WESUS is committed to providing smart, sustainable water treatment solutions for municipal and industrial clients worldwide.

FAQ
Q1: Are you a direct manufacturer? What certifications do you hold?
A: We are a direct manufacturer with our own production facilities and R&D team. We maintain full control over quality, cost, and delivery, and hold certifications including ISO 9001/14001 for our core products.

Q2: What types of collaboration models do you offer?
A: We provide flexible solutions:
- Equipment Supply: Standalone or packaged systems.
- Turnkey Solutions (EPC): Design, procurement, construction, and commissioning.
- Technical Cooperation: Process upgrades, operational maintenance support, and technical consulting.

Q3: How is after-sales service and support ensured?
A: We provide full lifecycle support:
- Warranty: 12–24 months on core equipment.
- Response: 7x24 remote support with fast on-site assistance when needed.
- Spare Parts: Genuine parts are stocked for long-term supply security.
- Maintenance: Annual Maintenance Contracts (AMC) are available to ensure long-term system efficiency.

Q4: What is your typical project execution process?
A: Our standardized workflow ensures efficiency and transparency:
1. Requirement Analysis → 2. Proposal & Quotation → 3. Design Finalization → 4. Production & Factory Testing → 5. Shipping & Installation → 6. Commissioning & Training → 7. After-sales Service.
Customer involvement is encouraged at key milestones.

Q5: Can you provide references or case studies?
A: We have extensive global project experience across municipal and various industrial sectors. We can provide detailed, anonymized case studies and client references upon request.

Q6: What are your payment terms and delivery lead times?
A: - Payment: We accept T/T and L/C, with standard industry progress payment terms.
- Lead Time: Standard equipment: 4–8 weeks.  Large custom projects: 12–20 weeks.
A clear production schedule is provided upon contract signing.

Q7: How do you serve international clients?
A: We are experienced in international projects, arranging complete logistics (FOB, CIF, DDP, etc.) and providing full customs documentation. Our designs pre-consider compliance requirements in target markets.

Q8: Can you upgrade or retrofit existing systems?
A: Yes. We specialize in evaluating existing facilities and providing customized retrofit and expansion solutions to enhance performance and capacity with minimal investment and downtime.

Q9: How can we start a consultation?
A: Please contact our Sales Engineering team. To facilitate an efficient discussion, please have your treatment requirements, water quality data, and site information ready. We will provide a preliminary proposal and professional advice.
