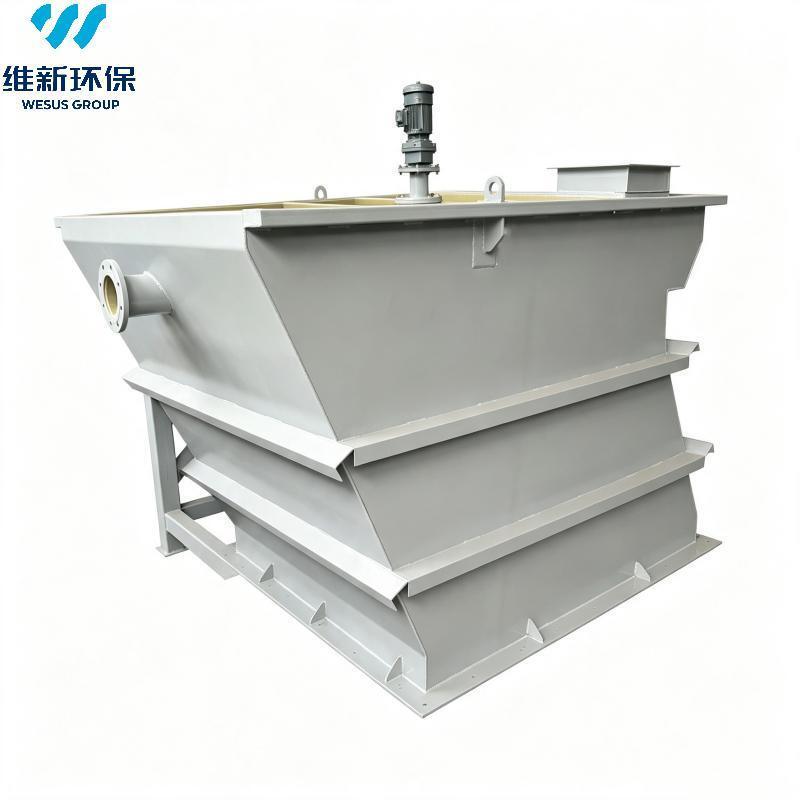

Lamella Clarifier with Built-in Sludge Scraper for Reliable Sludge Removal

Lamella Clarifier with Built-in Sludge Scraper for Reliable Sludge Removal

Brief Description

This Lamella Clarifier integrates inclined plate sedimentation with a built-in mechanical sludge scraper to support efficient solids separation and sludge discharge. The scraper conveys settled sludge toward the bottom discharge outlet, helping reduce sludge accumulation and hardening. Automatic flushing and an external coagulation dosing system are available as optional configurations.

Product Overview

The system features a water distribution zone, inclined plate settling assembly, bottom sludge hopper and built-in sludge scraper. The scraper assists in collecting and conveying settled solids toward the sludge outlet. Depending on the project requirements, the equipment can also be fitted with automatic flushing pipelines and a separate chemical dosing unit. Its configuration is suitable for applications requiring controlled sludge collection and convenient maintenance.

Working Principle

1. Wastewater is distributed evenly through the inclined plate settling zone.

2. Suspended solids settle onto the plates and slide toward the bottom sludge hopper.

3. The built-in scraper conveys accumulated sludge toward the discharge outlet.

4. Clarified water is collected at the upper section and transferred to the next process.

Product Parameters

Key Design & Performance Features

1. Built-in Mechanical Sludge Scraper
Helps move settled sludge toward the discharge point and reduce accumulation in the hopper.

2. Reduced Sludge Hardening Risk
Regular mechanical sludge removal helps limit prolonged sludge retention and compaction.

3. Inclined Plate Settling
Enhances effective settling area within a compact structure.

4. Optional Automatic Flushing
Flushing pipelines can be configured to help remove deposits from inclined plate surfaces.

5. Flexible Material Selection
Carbon steel with suitable anti-corrosion protection, SUS304 and SUS316L stainless steel are available.

Applications

1. Industrial wastewater containing suspended solids

2. Mineral and stone-processing wastewater

3. Steel and other industrial wastewater treatment

4. Sedimentation stages requiring mechanical sludge collection
