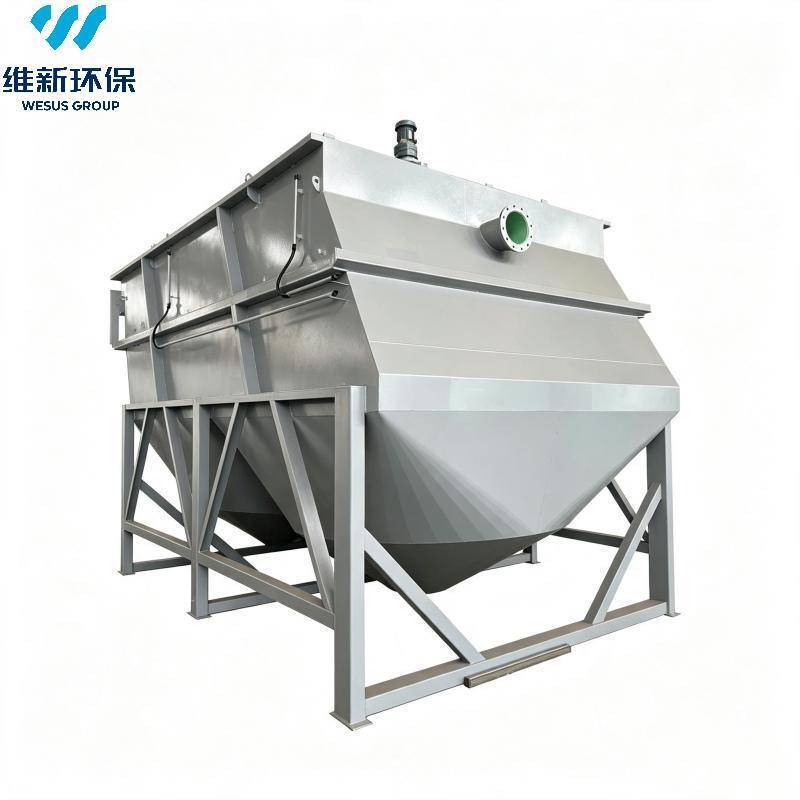

Lamella Clarifier for Efficient Solid-Liquid Separation in Water Treatment

Lamella Clarifier for Efficient Solid-Liquid Separation in Water Treatment

Brief Description

The Lamella Clarifier uses inclined plate sedimentation technology to enhance solid-liquid separation while reducing the required footprint. With optimized water distribution, a sludge hopper and an optional built-in sludge scraper, it provides an efficient solution for suspended solids removal in water and wastewater treatment. Automatic flushing and external chemical dosing systems can be selected according to project requirements.

Product Overview

The equipment consists of a water distribution zone, inclined plate settling zone, bottom sludge hopper and water collection system. A built-in sludge scraper can be configured to convey settled sludge toward the discharge outlet, while automatic flushing pipelines help maintain plate cleanliness. Carbon steel and stainless steel options are available, with customized dimensions and treatment capacities to suit different project conditions.

Working Principle

1. Wastewater enters the distribution zone and flows evenly into the inclined plate settling area.

2. Suspended solids settle onto the inclined plates and slide downward under gravity.

3. Settled sludge collects in the bottom hopper and is discharged, with mechanical scraping available when configured.

4. Clarified water rises to the collection system and flows to the next treatment stage.

Product Parameters

Key Design & Performance Features

1. Compact Structure
Inclined plates increase the effective settling area within a compact equipment footprint.

2. Efficient Sedimentation
The shallow settling design supports effective suspended solids removal when properly selected for the wastewater characteristics.

3. Flexible Configuration
A built-in sludge scraper and automatic flushing system can be configured according to project requirements.

4. Material Options
Carbon steel with suitable anti-corrosion protection, SUS304 and SUS316L stainless steel are available.

5. Customized Design
Dimensions, treatment capacity and connection specifications can be adjusted according to project conditions.

Applications

1. Industrial wastewater clarification

2. Surface water clarification

3. Reclaimed water treatment

4. Sedimentation units in wastewater treatment systems

Company Profile

WESUS is a leading manufacturer and total solution provider for advanced sewage and sludge treatment systems. Founded in Yixing, China in 2013, we offer reliable, cost-effective equipment and engineering services to global clients. Certified with ISO 9001, ISO 14001 and ISO 45001, we boast strong in-house R&D and manufacturing capabilities supported by a large production base, a professional technical team, patents and university cooperation. Our comprehensive product range includes screening, filtration, sludge dewatering, mixing, aeration and customized solutions. With end-to-end services from design to after-sales support and proven global project experience, we have earned wide recognition including national high-tech enterprise and 5-star after-sales certifications. Adhering to the philosophy of real innovation, excellence and win-win cooperation, WESUS is committed to providing smart, sustainable water treatment solutions for municipal and industrial clients worldwide.

FAQ

Q1: Are you a direct manufacturer? What certifications do you hold?
A: We are a direct manufacturer with our own production facilities and R&D team. We maintain full control over quality, cost, and delivery, and hold certifications including ISO 9001/14001 for our core products.

Q2: What types of collaboration models do you offer?
A: We provide flexible solutions:
- Equipment Supply: Standalone or packaged systems.
- Turnkey Solutions (EPC): Design, procurement, construction, and commissioning.
- Technical Cooperation: Process upgrades, operational maintenance support, and technical consulting.

Q3: How is after-sales service and support ensured?
A: We provide full lifecycle support:
- Warranty: 12–24 months on core equipment.
- Response: 7x24 remote support with fast on-site assistance when needed.
- Spare Parts: Genuine parts are stocked for long-term supply security.
- Maintenance: Annual Maintenance Contracts (AMC) are available to ensure long-term system efficiency.

Q4: What is your typical project execution process?
A: Our standardized workflow ensures efficiency and transparency:
1. Requirement Analysis → 2. Proposal & Quotation → 3. Design Finalization → 4. Production & Factory Testing → 5. Shipping & Installation → 6. Commissioning & Training → 7. After-sales Service.
Customer involvement is encouraged at key milestones.

Q5: Can you provide references or case studies?
A: We have extensive global project experience across municipal and various industrial sectors. We can provide detailed, anonymized case studies and client references upon request.

Q6: What are your payment terms and delivery lead times?
A: - Payment: We accept T/T and L/C, with standard industry progress payment terms.
- Lead Time: Standard equipment: 4–8 weeks. Large custom projects: 12–20 weeks.
A clear production schedule is provided upon contract signing.

Q7: How do you serve international clients?
A: We are experienced in international projects, arranging complete logistics (FOB, CIF, DDP, etc.) and providing full customs documentation. Our designs pre-consider compliance requirements in target markets.

Q8: Can you upgrade or retrofit existing systems?
A: Yes. We specialize in evaluating existing facilities and providing customized retrofit and expansion solutions to enhance performance and capacity with minimal investment and downtime.

Q9: How can we start a consultation?
A: Please contact our Sales Engineering team. To facilitate an efficient discussion, please have your treatment requirements, water quality data, and site information ready. We will provide a preliminary proposal and professional advice.
