Anti-Corrosive Tube Settler Clarifier with Gravity Sludge Hopper & Automatic Backwashing

Anti-Corrosive Tube Settler Clarifier with Gravity Sludge Hopper & Automatic Backwashing

Brief Description

This Tube Settler Clarifier is developed based on shallow tank sedimentation theory and adopts honeycomb tube packing to enhance solid-liquid separation. Sludge hoppers are arranged at the bottom for gravity sludge collection. An external chemical dosing system can be selected according to project working conditions. Featuring moderate manufacturing cost and convenient installation, the equipment is suitable for medium and small-scale water treatment projects.

Product Overview

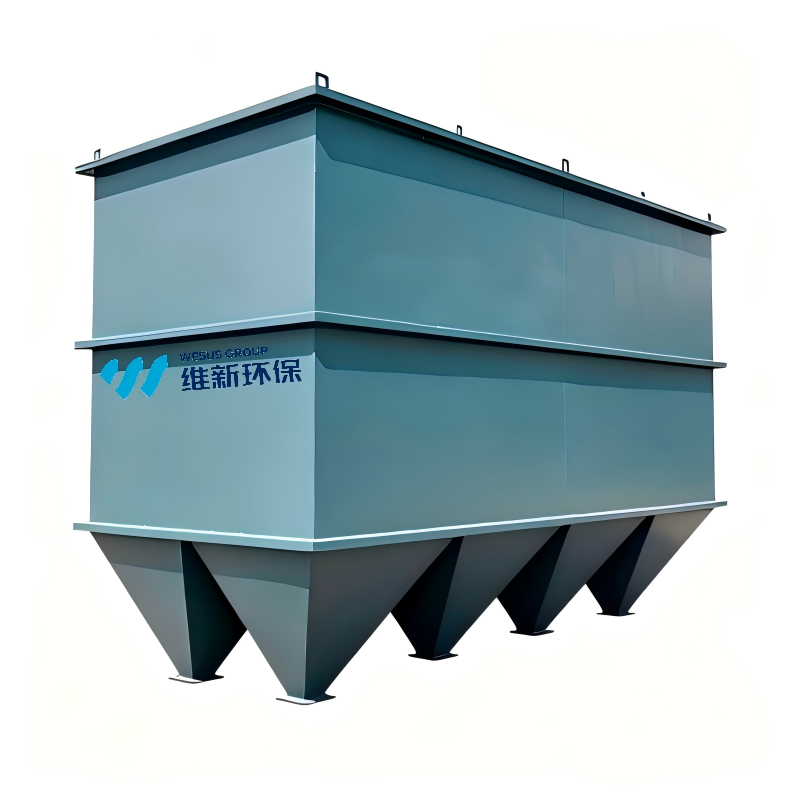

The equipment consists of water distribution zone, tube settling zone and bottom sludge collection hopper. It is equipped with supporting flushing pipelines and support frame. An electric control system is integrated to realize timed sludge discharge and media flushing. Main body materials including Anti-Corrosion Carbon Steel and stainless steel are optional. Overall dimensions and treatment capacity can be customized, and an external dosing unit can be equipped as required.

Working Principles

Efficient solid-liquid separation is achieved based on shallow sedimentation theory:

1. Suspended solids in water settle onto tube inner walls and slide down to the bottom sludge hopper.

2. Sludge accumulates inside the hopper and is discharged periodically once reaching set concentration.

3. Clarified clean water flows upward into the top collection trough and flows by gravity to subsequent treatment processes.

4. The backwashing pipeline activates regularly to clean tube media and mitigate clogging.​

Product Parameters

Key Design & Performance Features

1. Cost Effective

Simple structure with lower equipment investment, suitable for medium and small wastewater treatment projects.

2. Compact Footprint

Larger effective settling area occupies much less space compared with horizontal flow sedimentation tanks.

3. Easy Operation

Adopts gravity sludge collection by hopper, resulting in low operation energy consumption.

4. Flexible Optional Configuration

External dosing system can be selected according to inlet water quality to meet coagulation sedimentation requirements.

5. Customizable Materials

Carbon steel, SUS304 and SUS316L stainless steel available. Equipment size and treatment capacity can be adjusted on demand.

Applications

1. Small-scale Industrial Wastewater Treatment

Treatment of low-turbidity production wastewater from food, light industry, electroplating and other industries.

2. Rural & Township Domestic Sewage

Serving as supporting sedimentation unit for small integrated sewage treatment equipment.

3. Raw Water Purification

Water clarification for waterworks, small spring water and river water.

4. Reclaimed Water Reuse

Sedimentation process for small-scale recycled water treatment.
