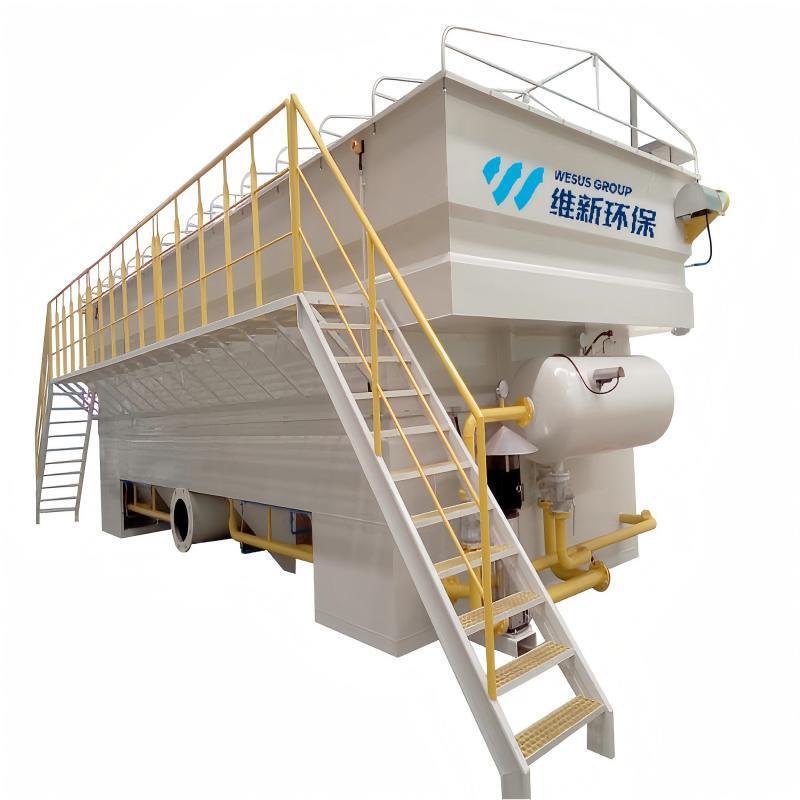

High Efficiency Curtain Flow DAF Dissolved Air Flotation Machine for Oil Water Separation
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | ISO |
| Model Number | Dissolved Air Flotation |
High Efficiency DAF machine for oil water separation
,Curtain Flow DAF dissolved air flotation
,Waste water machine with oil separation
High Efficiency Curtain Flow DAF Dissolved Air Flotation Machine for Oil Water Separation
Brief Description
Fitted with an upgraded multi-layer curtain-flow staged water distribution system, the tank maintains smooth water flow without eddies or counter-flow disturbance, fundamentally preventing floc fallback and scum carryover during skimming. It delivers excellent removal efficiency for ultra-fine colloids, trace emulsified oil, low-concentration suspended solids and trace total phosphorus, featuring higher overall treatment efficiency and clear effluent. It fits all water treatment scenarios that require strict discharge limits and advanced deep purification.
Product Overview
The high-efficiency curtain-flow dissolved air flotation (DAF) machine is an upgraded premium model based on traditional horizontal-flow DAF. Equipped with an exclusive curtain-flow steady water distribution structure, it solves common industry pain points of conventional DAFs, including turbulent flow, floc re-sedimentation, scum carryover and low hydraulic loading capacity. This equipment achieves a higher adhesion rate between microbubbles and micro-pollutants, significantly improves hydraulic treatment capacity and produces superior-quality effluent, while cutting energy and chemical consumption. It is suitable for large-flow, refractory wastewater and water upgrading projects with strict discharge standards.
Working Principle
The pressurized dissolved air system generates fine, uniform microbubbles to adsorb micro oil contaminants and flocs in wastewater. The layered parallel curtain flow inside the tank eliminates counter-flow turbulence, allowing flocs to float steadily and form a thin scum layer. A wide-width scum skimmer discharges scum evenly, while multiple balanced water collection outlets at the tank bottom trap trace pollutants to realize high-precision water purification.
Product Parameters
| Model | Capacity (m³/h) | Power (kW) | Dimension (m) | Nozzle List (DN) | ||||||||||
| RF-WDAF | m³/h | Recycle Pump (kW) | Air Compressor (kW) | Skimmer (kW) | Flocculation Mixer (kW) | Coagulation Mixer (kW) | L1/L2 | L1/L2 | W1/W2 | H1/H2 | Inlet (a) | Outlet (b) | Sludge Outlet (c) | Vent Nozzle (d) |
| 002 | ~2 | 0.75 | 0.55 | 0.2 | 0.37 | 0.25 | 3.5/2.5 | 4.0/3.0 | 2.4/1.2 | 2.2/1.3 | 50 | 50 | 80 | 80 |
| 005 | ~5 | 1.1 | 0.55 | 0.2 | 0.37 | 0.25 | 4.0/3.0 | 4.5/3.5 | 2.4/1.2 | 2.2/1.2 | 50 | 50 | 80 | 80 |
| 010 | ~10 | 4.0 | 0.55 | 0.12 | 0.37 | 0.25 | 4.3/3.3 | 4.8/3.5 | 2.9/1.7 | 2.2/1.2 | 80 | 80 | 80 | 100 |
| 020 | ~20 | 5.5 | 0.75 | 0.12 | 0.37 | 0.25 | 5.5/4.2 | 6.5/5.2 | 2.9/1.7 | 2.7/2.2 | 100 | 100 | 100 | 100 |
| 030 | ~30 | 5.5 | 0.75 | 0.12 | 0.37 | 0.25 | 5.6/4.2 | 6.5/5.2 | 2.9/1.7 | 2.7/2.2 | 100 | 100 | 100 | 100 |
| 040 | ~40 | 5.5 | 0.75 | 0.12 | 0.37 | 0.25 | 6.6/5.2 | 6.6/5.2 | 3.2/2.2 | 2.9/2.4 | 150 | 150 | 100 | 100 |
| 050 | ~50 | 7.5 | 0.75 | 0.12 | 0.75 | 0.37 | 7.6/6.2 | 9.1/7.7 | 3.2/2.2 | 2.8/2.4 | 200 | 200 | 150 | 100 |
| 060 | ~60 | 11 | 2.2 | 0.12 | 0.75 | 0.37 | 7.4/5.8 | 8.7/7.1 | 3.2/2.2 | 2.8/2.4 | 200 | 200 | 150 | 100 |
| 070 | ~70 | 11 | 2.2 | 0.12 | 1.5 | 0.37 | 8.8/7.2 | 10.3/8.7 | 3.7/2.7 | 3.2/2.8 | 250 | 200 | 150 | 100 |
| 080 | ~80 | 11 | 2.2 | 0.12 | 1.5 | 0.37 | 9.3/7.7 | 10.9/9.3 | 3.7/2.7 | 3.2/2.8 | 300 | 250 | 150 | 100 |
| 100 | ~100 | 11 | 2.2 | 0.12 | 1.5 | 0.37 | 8.7/7.1 | 10.4/8.8 | 4.4/3.4 | 3.2/2.8 | 250 | 200 | 150 | 100 |
| 120 | ~120 | 15 | 2.2 | 0.12 | 1.5 | 0.37 | 9.2/7.6 | 11/9.4 | 4.6/3.6 | 3.2/2.8 | 300 | 250 | 150 | 100 |
| 150 | ~150 | 18.5 | 3.0 | 0.12 | 1.5 | 0.37 | 10.7/9.1 | 12.9/11.3 | 4.6/3.6 | 3.2/2.8 | 300 | 300 | 150 | 100 |
| 080D | ~80 | 11 | 2.2 | 0.24 | - | - | 10.3 | - | 4.4/3.4 | 2.7/2.3 | 250 | 200 | 150 | 100 |
| 100D | ~100 | 11 | 2.2 | 0.24 | - | - | 11.6 | - | 4.4/3.4 | 2.7/2.3 | 300 | 250 | 150 | 100 |
| 200D | ~200 | 22 | 3.0 | 0.24 | - | - | 13.3 | - | 4.4/3.4 | 2.7/2.3 | 350 | 300 | 150 | 100 |
| 250D | ~250 | 22 | 3.0 | 0.24 | - | - | 15.5 | - | 4.5/3.6 | 2.7/2.3 | 400 | 350 | 150 | 100 |
| 300D | ~300 | 30 | 3.7 | 0.24 | - | - | 17.9 | - | 4.4/3.4 | 2.7/2.3 | 450 | 350 | 150 | 100 |
Key Design & Performance Features
1. Curtain-flow steady flow structure ensures outstanding operational stability.
2. Ultra-high hydraulic loading rate, larger treatment capacity under the same footprint and high land utilization efficiency.
3. Short hydraulic retention time (HRT), fast purification speed, suitable for continuous large-flow water treatment.
4. High utilization efficiency of chemicals and power, lowering long-term operation costs.
5. Powerful deep purification performance, effectively removing trace grease, color, ultra-fine colloids and trace total phosphorus.
6. Strong tolerance to wide fluctuations in water flow and water quality, guaranteeing stable compliant effluent under complex working conditions.
Applications
1. Comprehensive wastewater from large-scale printing and papermaking industrial parks;
2. Wastewater from large-scale food processing and slaughter industrial parks;
3. High-concentration emulsified cutting fluid wastewater from fine chemical and machinery manufacturing industries;
4. Upgrade reconstruction of municipal wastewater treatment plants, advanced pretreatment for reclaimed water reuse;
5. River ecological restoration, and water treatment projects with stringent limits on ultra-low SS and ultra-low total phosphorus.
