GS Series Wire Rope Traction Mechanical Grille Cleaner
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | ISO |
| Model Number | Mechanical Bar Screen |
GS Series wire rope grille cleaner
,mechanical bar screen cleaner
,traction mechanical grille cleaner
GS Series Wire Rope Traction Mechanical Grille Cleaner
Brief Description
The GS wire rope rake grille cleaner is widely applied in medium and large waterworks, rain & sewage lifting pump stations, wastewater treatment plants and power plant water inlets. It intercepts and removes large floating debris and bottom sediments in water, protects pump impellers and reduces the processing load of subsequent process equipment.
Product Overview

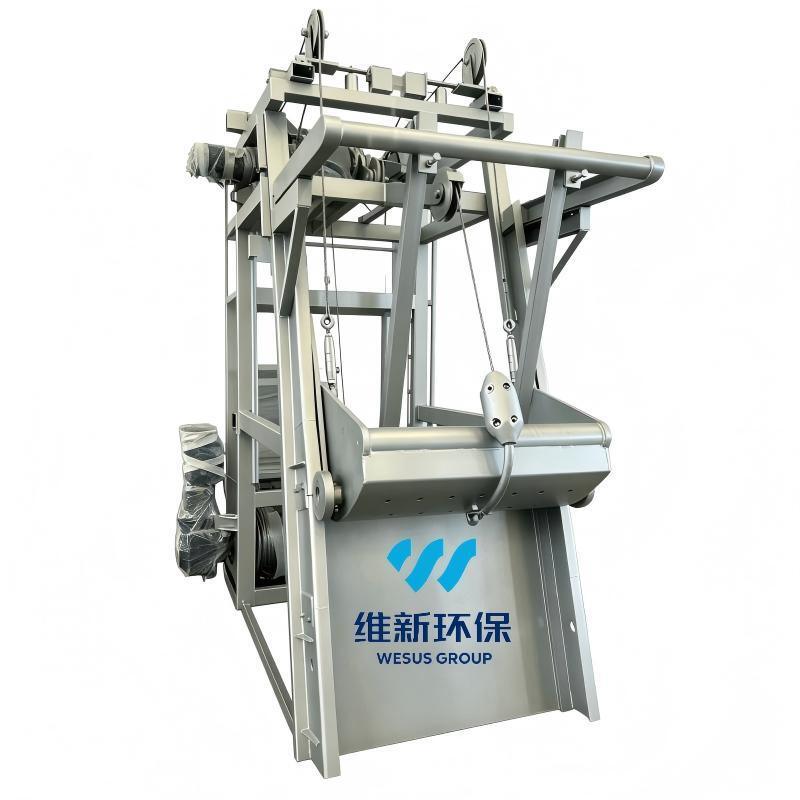

The equipment frame is mounted on the top of the wellhead. Fixed grating bars form the water passing surface. It adopts a split frame structure, where the upper frame and lower grille assembly are separate units. The large-capacity heavy-duty grab-type rake bucket is guided by side rollers and pulled by wire ropes for stable operation. Equipped with a discharge scraper on the upper frame, it realizes thorough sludge discharge. Independent drive systems control the lifting and opening/closing of the rake bucket. Local and remote control modes are available for easy operation.
Product Parameters
| Parameter | GS-1000 | GS-1100 | GS-1200 | GS-1300 | GS-1400 | GS-1500 | GS-1600 | GS-1700 | GS-1800 | GS-2000 | GS-2500 | GS-3000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equipment Width B (mm) | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 2000 | 2500 | 3000 |
| Bar Gap (mm) | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 |
| Installation Angle (°) | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 |
| Max Channel Depth (mm) | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 |
| Rake Moving Speed (m/min) | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Lifting Motor Power (kW) | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.5–3.0 | 1.5–3.0 | 1.5–3.0 |
| Turning Rake Motor Power (kW) | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.75–1.1 | 0.75–1.1 | 0.75–1.1 |
| Rake Bucket Load Capacity (N/m) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
Working Principle
Fixed grating bars form the water passing surface. When sewage flows through the grille, solids larger than the grating gap are trapped.
1. The rake bucket is first driven by the rake turnover motor to open, then stops.
2. The lifting motor drives the rake bucket down along both side rails to the bottom of the grille under the control of the height limiter.
3. The rake turnover motor restarts to close the rake bucket.
4. The lifting motor starts again. Driven by wire ropes, the rake bucket lifts the intercepted waste along the grille and slag baffle.
5. When reaching the discharge port, the lifting motor stops. The cleaning scraper on the upper frame scrapes off the waste, which falls into the conveyor or garbage cart, finishing one cycle of sludge removal.
Key Design & Performance Features
1. Unique split frame structure: the upper frame and lower grille assembly are separated.
2. Large-capacity, heavy-duty grab-type rake bucket. Side roller guide and wire rope traction ensure stable running.
3. Discharge scraper installed on the upper frame, thoroughly scraping sludge out from the rake bucket.
4. Two independent drive systems for rake bucket lifting and opening/closing, operated automatically by programmed electrical control.
5. Simple operation, supporting both on-site local control and remote control.
Applications
1. Medium and large tap water plants
2. Rainwater and sewage lifting pump stations
3. Municipal wastewater treatment plants
4. Water intake of power plants
