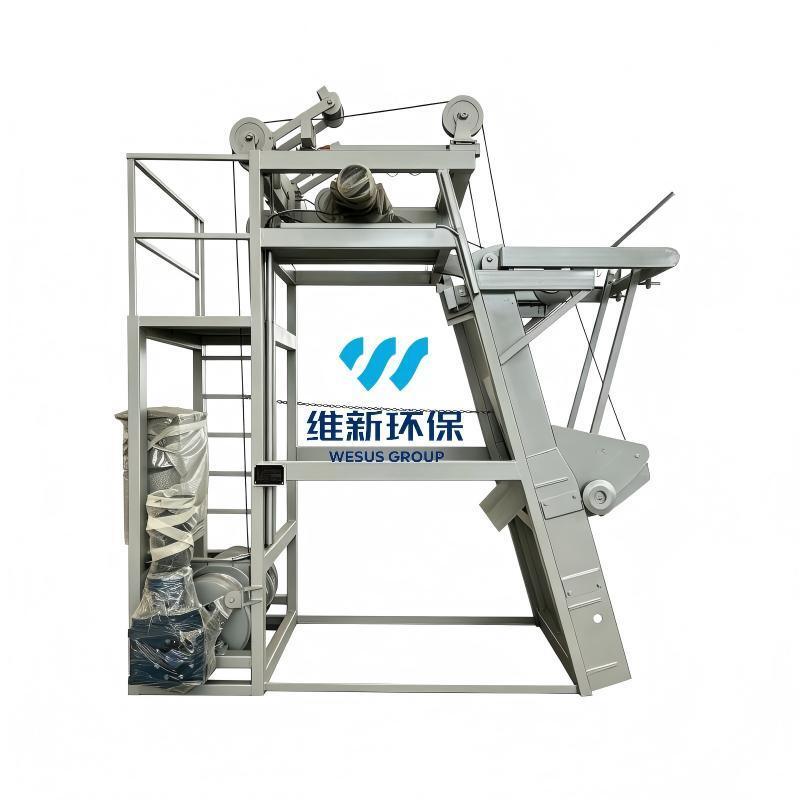

Mechanical Sewage Grille Cleaner for Wastewater Treatment
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | ISO |
| Model Number | Mechanical Bar Screen |
Mechanical sewage grille cleaner
,Wastewater treatment bar screen
,Mechanical bar screen cleaner
Mechanical Sewage Grille Cleaner for Wastewater Treatment
Brief Description
GS Series Wire Rope Rake Bar Screen captures floating trash and sediment in water. Widely used in waterworks, sewage pump stations, wastewater plants and power plant intakes. It protects pumps and reduces load for follow-up treatment facilities.
Product Overview
This wire rope traction bar screen adopts split frame construction. The heavy-duty grab rake bucket is pulled by wire ropes with side roller guides for reliable operation. Equipped with slag scraper and dual independent drive systems. It supports local & remote automatic control for continuous sludge removal.
Product Parameters
| Parameter | GS-1000 | GS-1100 | GS-1200 | GS-1300 | GS-1400 | GS-1500 | GS-1600 | GS-1700 | GS-1800 | GS-2000 | GS-2500 | GS-3000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Equipment Width B (mm) | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 2000 | 2500 | 3000 |
| Bar Gap (mm) | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 | 20–100 |
| Installation Angle (°) | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 | 75–90 |
| Max Channel Depth (mm) | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 |
| Rake Moving Speed (m/min) | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Lifting Motor Power (kW) | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.1–1.2 | 1.5–3.0 | 1.5–3.0 | 1.5–3.0 |
| Turning Rake Motor Power (kW) | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.55–0.75 | 0.75–1.1 | 0.75–1.1 | 0.75–1.1 |
| Rake Bucket Load Capacity (N/m) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
Working Principle
Fixed grating bars form the water passing surface. When sewage flows through the grille, solids larger than the grating gap are trapped.
1. The rake bucket is first driven by the rake turnover motor to open, then stops.
2. The lifting motor drives the rake bucket down along both side rails to the bottom of the grille under the control of the height limiter.
3. The rake turnover motor restarts to close the rake bucket.
4. The lifting motor starts again. Driven by wire ropes, the rake bucket lifts the intercepted waste along the grille and slag baffle.
5. When reaching the discharge port, the lifting motor stops. The cleaning scraper on the upper frame scrapes off the waste, which falls into the conveyor or garbage cart, finishing one cycle of sludge removal.
Key Design & Performance Features
1.Split frame structure for easy installation and maintenance.
2.Heavy-duty large-capacity grab rake bucket.
3.Stable wire rope traction with side roller guiding.
4.Complete slag discharge by scraper.
5.Dual independent drive, local & remote control available.
Applications
1. Medium and large tap water plants.
2. Rainwater and sewage lifting pump stations.
3. Municipal wastewater treatment plants.
4. Water intake of power plants.
