Screenings Screw Conveyor for Mechanical Bar Screen Waste Collection and Conveying
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | ISO |
| Model Number | Mixing and Conveying Machine |
screw conveyor for bar screen
,mechanical bar screen waste conveyor
,wastewater screenings conveying machine
Screenings Screw Conveyor for Mechanical Bar Screen Waste Collection and Conveying
Brief Description
Designed for wastewater screening systems, the Screenings Screw Conveyor transports intercepted solids from mechanical bar screens to designated collection or disposal points. Its shaftless spiral structure is suitable for handling mixed screenings containing fibers, rags, and irregular solid debris. It can be integrated with coarse screens, fine screens, and other screening equipment to create a coordinated screenings handling system.
Product Overview

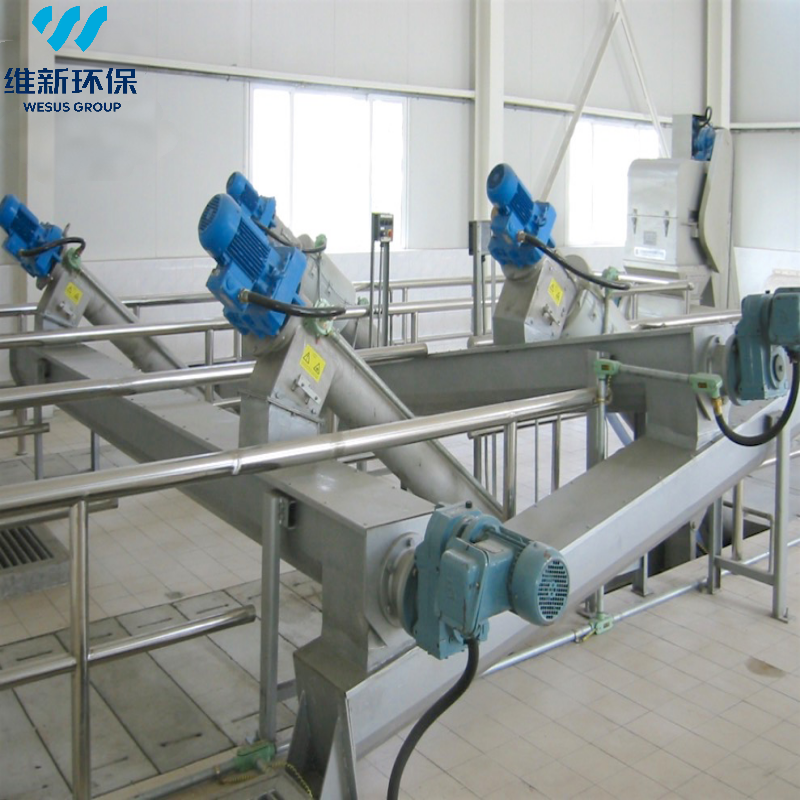

The Screenings Screw Conveyor is used downstream of mechanical screening equipment to transfer solid waste removed from wastewater.
During pretreatment, bar screens intercept debris such as rags, leaves, plastic fragments, and other solid materials. The conveyor receives these screenings from the screen discharge area or a collection hopper and transports them to a designated discharge point.
The shaftless spiral design provides a conveying channel without a central shaft, helping reduce wrapping problems associated with fibrous screenings. The equipment layout can be customized to match the screen discharge height, collection container, and available installation space.
Working Principle
Screenings discharged from the mechanical bar screen enter the conveyor through an inlet or receiving hopper. A motor and gearbox drive the shaftless spiral, which moves the collected material along the trough toward the outlet.
The discharge arrangement can be designed to transfer screenings into a collection bin, container, or subsequent handling unit. Depending on project requirements, the conveyor can be arranged horizontally or at a suitable incline.
Product Parameters
| Model Item | WLS-260 | WLS-300 | WLS-360 | WLS-420 | WLS-460 | |
| Rotation Speed(r/mm) | 18 (horizontal) ;＞18 (incline) | |||||
| Capacity(m3/h) | 0° | 3 | 6 | 9.5 | 12 | 15 |
| 15° | 2.1 | 4.6 | 6.5 | 9 | 11 | |
| 30° | 1.3 | 2.6 | 4.3 | 5.7 | 7.5 | |
| Screw Diameter(mm) | 220 | 260 | 320 | 380 | 420 | |
| Power(kw) | 1.1-4.0 | |||||
| Installation Angle(a) | ≤20°(special ordering 20°＜a≤30°) | |||||
| Converying Length(m) | Determined by customer needs | |||||
Key Design & Performance Features
1. Screenings-Specific Conveying
Designed for solid residues discharged from wastewater screening equipment.
2. Suitable for Fibrous Debris
The shaftless structure helps reduce the risk of rags and fibers wrapping around a central shaft.
3. Direct Equipment Connection
Can be configured to connect with mechanical bar screens and fine screening units.
4. Flexible Discharge Layout
Outlet height and position can be adapted to the collection arrangement.
5. Enclosed Handling Option
Helps contain screenings during transport and maintain a more organized equipment area.
6. Custom Engineering
Dimensions, drive configuration, and inlet arrangements can be selected according to the screening system.
Applications
1. Coarse bar screen screenings removal
2. Fine screen screenings conveying
3. Wastewater inlet screening systems
4. Municipal sewage pretreatment
5. Pump station screening waste handling
6. Screening residue collection and discharge
7. Integrated mechanical screening systems
