Anti Tangling And Anti Clogging Shaftless Screw Conveyor Powerful And Durable
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | CE,UL |
| Model Number | Mixing and Conveying Machine |
shaftless screw conveyor powerful
,anti clogging shaftless screw conveyor
,powerful shaftless conveyor

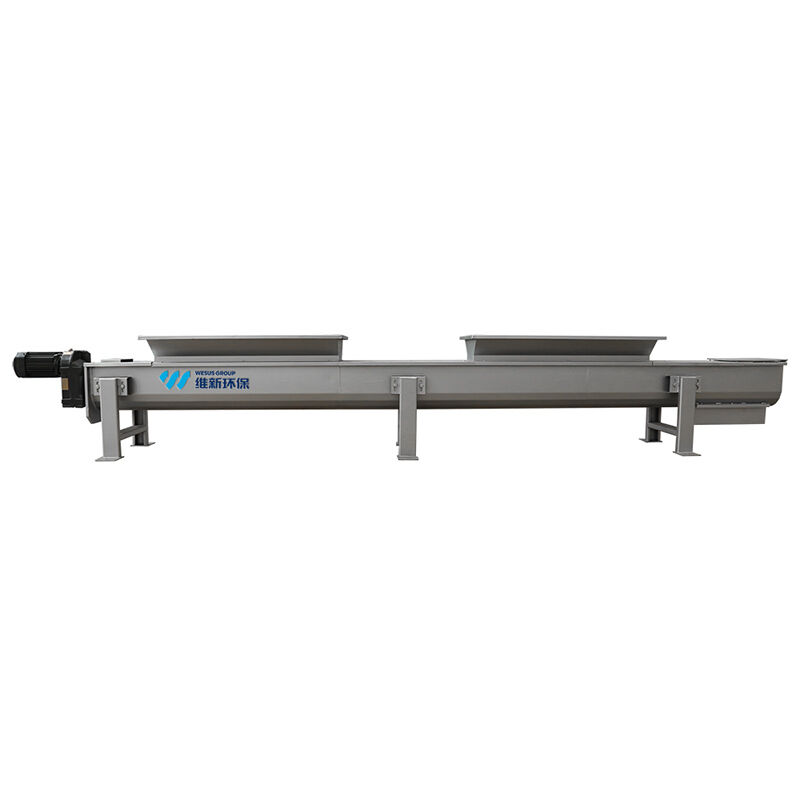

Anti-tangling and Anti-clogging Shaftless Screw Conveyor Powerful and Durable
Brief Description
Designed for handling highly viscous and easily tangled industrial materials, this shaftless screw conveyor completely solves the problem of clogging common in traditional shafted conveyors. Its anti-tangling and anti-clogging core structure ensures smooth passage of sludge, waste, and semi-fluid materials without frequent downtime for cleaning. The equipment operates powerfully, maintaining stable conveying efficiency even under full load. Constructed entirely of high-strength, wear-resistant materials, it is durable and significantly extends its service life. Whether in wastewater treatment plants or biomass power plants, it can adapt to harsh working conditions, making it an ideal industrial equipment for improving material flow efficiency and reducing maintenance costs.
Product Overview
Unlike traditional screw conveyors with a central shaft, our shaftless design features a robust, coiled spiral without a center shaft. This innovative engineering solves the most persistent problems in conveying sticky, stringy, fibrous, or lumpy materials.
Working Principle
*Shaftless Rotary Drive: The motor drives a high-strength, shaftless spiral steel belt to rotate directly within the enclosed trough, eliminating the need for a traditional intermediate shaft structure.
*Axial Thrust Conveying: Utilizing the thrust of the rotating spiral surface, materials are smoothly propelled forward under gravity, unlike blades that rotate with the belt, moving like a nut along a screw.
*Self-Cleaning and Anti-Entanglement: The absence of a central shaft prevents long fibers and sticky materials from clogging; simultaneously, the rotating steel belt scrapes the trough bottom, achieving automatic cleaning and preventing blockages.
*Low-Speed, High-Torque Operation: The equipment typically operates in a low-speed, high-torque mode, ensuring strong power even when handling complex materials with high resistance and high fill rates.
Product Parameters
| Model Item | WLS-260 | WLS-300 | WLS-360 | WLS-420 | WLS-460 | |
| Rotation Speed(r/mm) | 18 (horizontal) ;＞18 (incline) | |||||
| Capacity(m3/h) | 0° | 3 | 6 | 9.5 | 12 | 15 |
| 15° | 2.1 | 4.6 | 6.5 | 9 | 11 | |
| 30° | 1.3 | 2.6 | 4.3 | 5.7 | 7.5 | |
| Screw Diameter(mm) | 220 | 260 | 320 | 380 | 420 | |
| Power(kw) | 1.1-4.0 | |||||
| Installation Angle(a) | ≤20°(special ordering 20°＜a≤30°) | |||||
| Converying Length(m) | Determined by customer needs | |||||
Key Design & Performance Features
*Zero Clogging: The open-core design eliminates the central shaft where material typically builds up and hardens. It handles problematic materials like wastewater sludge, municipal solid waste, biomass, food waste, and viscous industrial by-products with ease.
*Enhanced Efficiency: With no internal obstructions, material flows smoothly and consistently, increasing your overall throughput and operational efficiency.
*Low Maintenance: Reduced clogging means less downtime for clean-outs. The simple, durable design has fewer wear points, leading to significantly lower maintenance costs and longer service life.
*Greater Flexibility: Available in various pitches, diameters, and materials of construction (e.g., carbon steel, stainless steel), our conveyors can be customized to fit your specific layout and material characteristics.
*Space-Saving Design: Capable of operating at steeper inclines than traditional conveyors, it optimizes floor space in your facility.
Applications
*Wastewater Treatment Plants (Screening, Grit, Sludge)
*Waste-to-Energy & Recycling Facilities (MSW, Biomass)
*Food Processing Industry (Fruit/Vegetable Waste, Peels, Pomace)
*Pulp & Paper Industry
*Chemical and Mineral Processing
