Smooth rubber Heavy Duty Belt Conveyors Machine Reliable Conveying Robust Structure
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | CE,UL |
| Model Number | Mixing and Conveying Machine |
rubber heavy duty belt conveyors
,smooth heavy duty belt conveyor
,smooth heavy duty belt conveyors
Smooth Operation and Conveying Machine Reliable Conveying Robust Structure
Brief Description

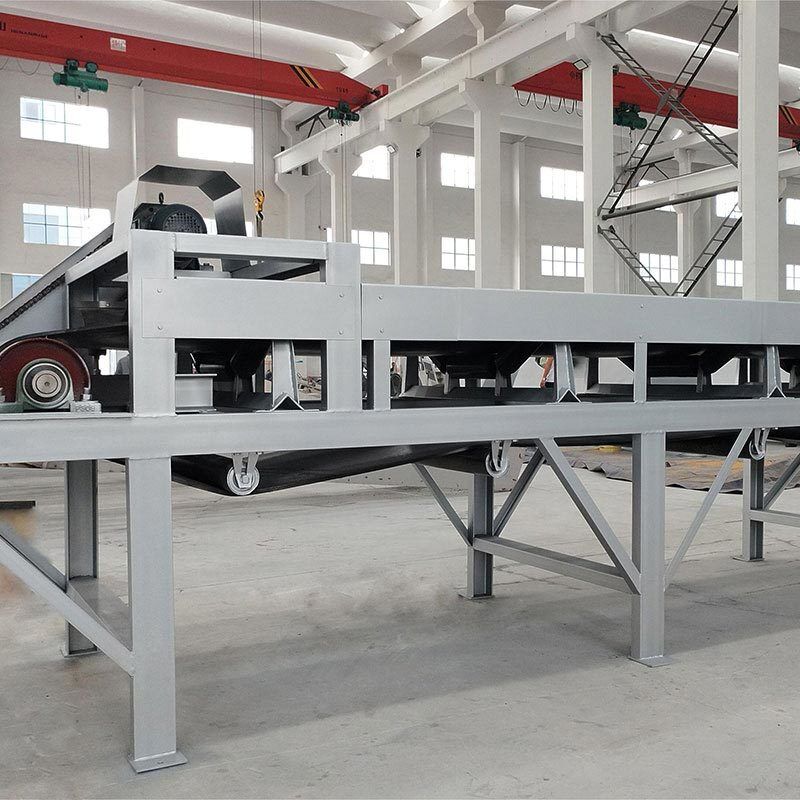

This belt conveyor features a high-strength frame and high-quality rubber belt, ensuring smooth operation even under high loads. It is suitable for the continuous transfer of heavy industrial materials such as mining crushed stone, cement clinker, and metallurgical auxiliary materials, effectively improving the automation level and logistics efficiency of production lines.
Product Overview
Designed for the transportation of solid granular substances and loose bulk materials, the PD belt conveyor stands out with stable and dependable running performance. Boasting high conveying throughput, extended delivery range, multi-point feeding function and uninterrupted conveying operation, it supports both horizontal and inclined installation layouts. Featuring a compact and straightforward structure, this machine delivers hassle-free operation and effortless maintenance management.
Working Principle
This equipment is equipped with a continuous trough belt conveyor. Materials are discharged onto the conveyor belt from the outlet of the grid or dewatering machine. Driven by an electric drum, the materials are transported from one end to the other, where they are delivered into a garbage bin for subsequent treatment.
Product Parameters
| Model | PD-500 | PD-650 | PD-800 | PD-1000 | ||
| Transmission bandwidth B (mm) | 500 | 650 | 800 | 1000 | ||
| Conveying capacity Q (m³/h) | Installation angle a (°) | 0 | 25 | 320 | 50 | 75 |
| 10 | 22.5 | 28.8 | 45 | 67.5 | ||
| 15 | 18.75 | 24 | 37.5 | 56.25 | ||
| 20 | 15 | 19.2 | 30 | 45 | ||
| Belt speed V (m/s) | 0.6-1.0 | |||||
| Motor power (kW) | 0.75-22.0 (depending on L) | |||||
| Electric roller diameter D (mm) | depending on L | |||||
| Installation dimensions (mm) | B1 | B+250 | ||||
| L | Depends on user requirements | |||||
| H | Depends on user requirements | |||||
| H1 | H+80+(D/2) | |||||
Key Design & Performance Features
*The drive unit uses an oil-cooled electric drum, integrating the drive unit with the drum. It is aesthetically pleasing, rationally designed, easy to install, occupies little space, and is easy to maintain.
*The spiral tensioning device not only tensions the belt but also ensures the safe, reliable, and efficient operation of the conveyor belt.
*The scraper at the discharge port prevents material from adhering to the return conveyor belt, ensuring the material is conveyed to its intended location.
*The conveyor belt is made of four layers of reinforced rubber with metal joints, making it easy to clean, corrosion-resistant, and long-lasting.
*Slag baffles are installed on both sides of the upper trough-shaped support roller to ensure safe material transport.
Applications
- Material Recovery Facilities (MRFs) and operation management of various recycling centers
- Waste-to-energy and energy conversion projects
- Composting treatment and resource-based disposal of organic waste
- Biomass material transportation and biofuel production & processing
- Aggregate and slag recycling and reuse projects
- Specialized environmental remediation and pollution control projects
Company Profile
WESUS is a leading manufacturer and total solution provider for advanced sewage and sludge treatment systems. Founded in Yixing, China in 2013, we offer reliable, cost-effective equipment and engineering services to global clients. Certified with ISO 9001, ISO 14001 and ISO 45001, we possess strong in-house R&D and manufacturing capabilities supported by a large production base, a professional technical team, patents and university cooperation. Our comprehensive product range includes screening, filtration, sludge dewatering, mixing, aeration and customized solutions. With end-to-end services from design to after-sales support and proven global project experience, we have earned wide recognition including national high-tech enterprise and 5-star after-sales certifications. Adhering to the philosophy of real innovation, excellence and win-win cooperation, WESUS is committed to providing smart, sustainable water treatment solutions for municipal and industrial clients worldwide.
FAQ
Q1: Are you a direct manufacturer? What certifications do you hold?
A: We are a direct manufacturer with our own production facilities and R&D team. We maintain full control over quality, cost, and delivery, and hold certifications including ISO 9001/14001 for our core products.
Q2: What types of collaboration models do you offer?
A: We provide flexible solutions:
- Equipment Supply: Standalone or packaged systems.
- Turnkey Solutions (EPC): Design, procurement, construction, and commissioning.
- Technical Cooperation: Process upgrades, operational maintenance support, and technical consulting.
Q3: How is after-sales service and support ensured?
A: We provide full lifecycle support:
- Warranty: 12–24 months on core equipment.
- Response: 7x24 remote support with fast on-site assistance when needed.
- Spare Parts: Genuine parts are stocked for long-term supply security.
- Maintenance: Annual Maintenance Contracts (AMC) are available to ensure long-term system efficiency.
Q4: What is your typical project execution process?
A: Our standardized workflow ensures efficiency and transparency:
1. Requirement Analysis → 2. Proposal & Quotation → 3. Design Finalization → 4. Production & Factory Testing → 5. Shipping & Installation → 6. Commissioning & Training → 7. After-sales Service.
Customer involvement is encouraged at key milestones.
Q5: Can you provide references or case studies?
A: We have extensive global project experience across municipal and various industrial sectors. We can provide detailed, anonymized case studies and client references upon request.
Q6: What are your payment terms and delivery lead times?
A: - Payment: We accept T/T and L/C, with standard industry progress payment terms.
- Lead Time: Standard equipment: 4–8 weeks. Large custom projects: 12–20 weeks.
A clear production schedule is provided upon contract signing.
Q7: How do you serve international clients?
A: We are experienced in international projects, arranging complete logistics (FOB, CIF, DDP, etc.) and providing full customs documentation. Our designs pre-consider compliance requirements in target markets.
Q8: Can you upgrade or retrofit existing systems?
A: Yes. We specialize in evaluating existing facilities and providing customized retrofit and expansion solutions to enhance performance and capacity with minimal investment and downtime.
Q9: How can we start a consultation?
A: Please contact our Sales Engineering team. To facilitate an efficient discussion, please have your treatment requirements, water quality data, and site information ready. We will provide a preliminary proposal and professional advice.
