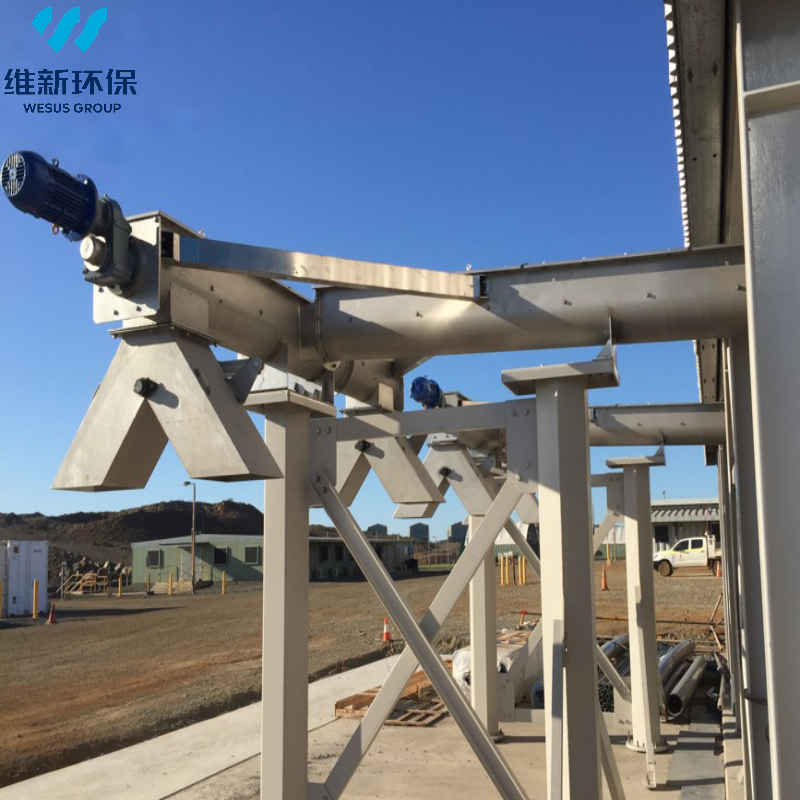

Shaftless Screw Conveyor for Wastewater Treatment Sludge and Screenings Conveying
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | ISO |
| Model Number | Mixing and Conveying Machine |
Shaftless Screw Conveyor for Sludge
,Shaftless Screw Conveyor for Screenings
,Wastewater Treatment Screw Conveyor
Shaftless Screw Conveyor for Wastewater Treatment Sludge and Screenings Conveying
Brief Description
The shaftless screw conveyor is designed for conveying screenings, dewatered sludge, and other solid residues generated during wastewater treatment. Its shaftless spiral design provides an open conveying space without a central shaft, helping reduce material wrapping around the shaft and supporting the continuous transport of challenging materials. It can be integrated with mechanical bar screens, sludge dewatering machines, and other wastewater treatment equipment.
Product Overview
The Shaftless Screw Conveyor is a material handling solution for wastewater treatment plants. It transfers collected screenings and sludge between treatment units, collection points, and discharge locations.
Unlike conventional shafted screw conveyors, the shaftless design eliminates the central shaft, providing more conveying space for fibrous and irregular materials. The conveyor can be configured with a U-shaped trough or enclosed housing according to the material characteristics, installation space, and process requirements.
The equipment can be designed for horizontal or inclined conveying, subject to the selected configuration and conveying conditions.
Working Principle
The drive unit rotates the shaftless spiral inside the conveyor trough or housing. As the spiral rotates, the material is pushed forward along the conveying channel toward the discharge outlet.
The material feed rate, conveying capacity, and discharge performance depend on the spiral diameter, rotational speed, conveyor length, inclination angle, and material properties.
Product Parameters
| Model Item | WLS-260 | WLS-300 | WLS-360 | WLS-420 | WLS-460 | |
| Rotation Speed(r/mm) | 18 (horizontal) ;＞18 (incline) | |||||
| Capacity(m3/h) | 0° | 3 | 6 | 9.5 | 12 | 15 |
| 15° | 2.1 | 4.6 | 6.5 | 9 | 11 | |
| 30° | 1.3 | 2.6 | 4.3 | 5.7 | 7.5 | |
| Screw Diameter(mm) | 220 | 260 | 320 | 380 | 420 | |
| Power(kw) | 1.1-4.0 | |||||
| Installation Angle(a) | ≤20°(special ordering 20°＜a≤30°) | |||||
| Converying Length(m) | Determined by customer needs | |||||
Key Design & Performance Features
1. Shaftless Spiral Design
Eliminates the central shaft to provide more conveying space for fibrous and irregular materials.
2. Reduced Material Wrapping
Helps minimize the accumulation of stringy materials around a central shaft.
3.Flexible Layout
Conveyor length, inclination, inlet, and outlet positions can be configured to suit the treatment plant.
4. Wastewater Equipment Integration
Suitable for connection with mechanical screens, sludge dewatering machines, and collection hoppers.
5. Material Options
Stainless steel or carbon steel construction can be selected according to operating conditions.
6. Enclosed Conveying Option
An enclosed housing can help contain transported material and reduce exposure during conveying.
Applications
1. Wastewater treatment plant screenings conveying
2. Dewatered sludge transfer
3. Mechanical bar screen discharge systems
4. Sludge dewatering equipment discharge
5. Solid residue collection and transfer
6. Municipal wastewater pretreatment systems
7. Industrial wastewater pretreatment systems
