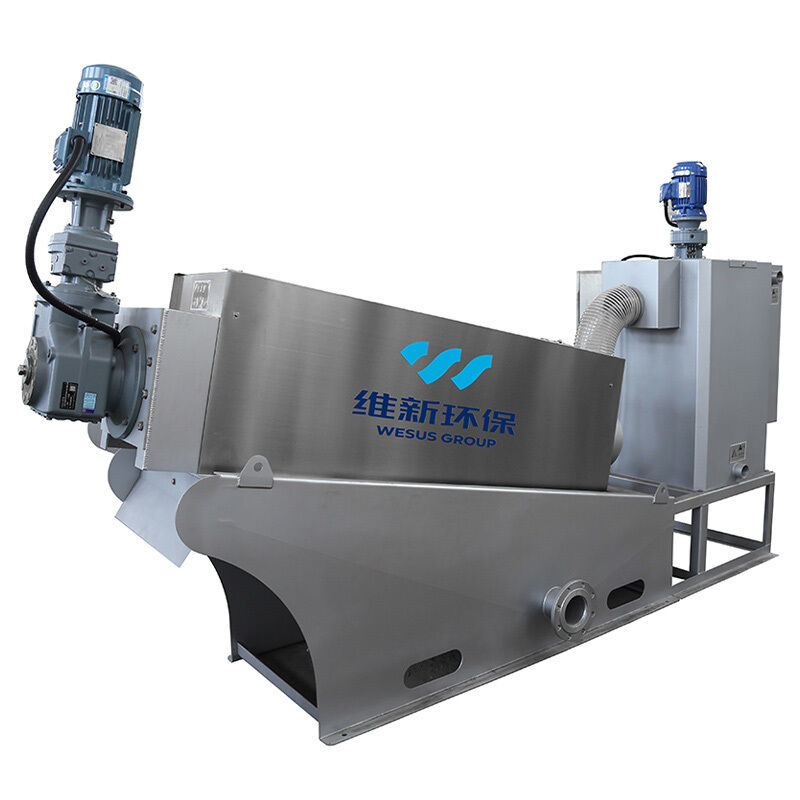

Continuous No Clogging Dewatering Screw Press Machine Smooth Start Up Excellent Sealing

Continuous Dewatering Sludge Dewatering Machine Smooth Start-up Excellent Sealing

Brief Description

This machine enables uninterrupted sludge dewatering with a smooth start-up and shutdown process, avoiding impact on upstream systems. The machine has excellent overall sealing to prevent odor escape and liquid leakage. Suitable for continuous production processes requiring stable connection to biological treatment tanks or thickening tanks.

Product Overview

The screw press sludge dewatering machine is equipped with distinct advantages: no clogging during continuous operation, excellent wear resistance, low component loss, energy-efficient running and easy operation. It solves the long-term technical problems of conventional sludge dewatering machines, such as frequent blockages, large occupied area, failure to treat low-concentration sludge and oily sludge, high energy consumption and complex operation, achieving efficient and energy-saving dewatering. This integrated device merges a fully automatic control cabinet, flocculation mixing tank, sludge thickening-dewatering integrated body and filtrate collecting tank. Operating fully automatically, it accomplishes efficient flocculation, continuously finishes sludge thickening and press dewatering, and redirects collected filtrate for recycling or compliant discharge.

Working Principle

The screw press sludge dewatering machine is structured with a thickening section and a dewatering section in sequence. Sludge passes through gravity thickening in the front thickening section, then is propelled to the subsequent dewatering section. During the forward propulsion process, the filter gaps and screw pitch narrow gradually, and the blocking of the back pressure plate gives rise to considerable internal pressure, which keeps compressing the sludge volume and realizes complete dewatering.

Product Parameters

Key Design & Performance Features

1. Low-Concentration Direct Dewatering, Low Infrastructure Costs

The screw press sludge dewatering machine integrates both thickening and dewatering sections, enabling it to handle both high-concentration and low-concentration sludge directly, from thickening to dewatering the concentrated water. It is suitable for a wide range of sludge concentrations, from 2000mg/L to 50000mg/L.

2. Fixed and Moving Rings Replace Filter Cloth, Self-Cleaning, Clog-Free, and Easy to Handle Oily Sludge

Under the rotation of the screw, the moving rings in the screw press sludge dewatering machine continuously shift relative to the fixed rings, achieving a continuous self-cleaning process and avoiding the clogging problems commonly found in traditional dewatering machines. Therefore, it has a strong capacity for handling oily sludge, is easy to separate, and does not clog; moreover, it requires no external water for high-pressure washing, is clean and environmentally friendly, odorless, and produces no secondary sludge.

3. Low-speed operation, low noise, and low energy consumption

The screw press sludge dewatering machine relies on internal pressure for dewatering, eliminating the need for large machines like rollers. Its low operating speed of only 2-3 revolutions per minute results in water and energy savings, as well as low noise. Its average energy consumption is 1/8 that of a belt press and 1/20 that of a centrifuge, with a unit power consumption of only 0.01-0.1 kWh/kg-ds, reducing the operating costs of wastewater treatment systems.

4. Fully automatic control and simple operation and management

Applications

Urban domestic wastewater, municipal sewage, including industries such as food, beverage, chemical, leather, welding materials, papermaking, printing and dyeing, pharmaceutical, electroplating, oil and electricity, coal mining, brewing, livestock farming, kitchen wastewater, water supply facilities, power stations, and steel mills.
