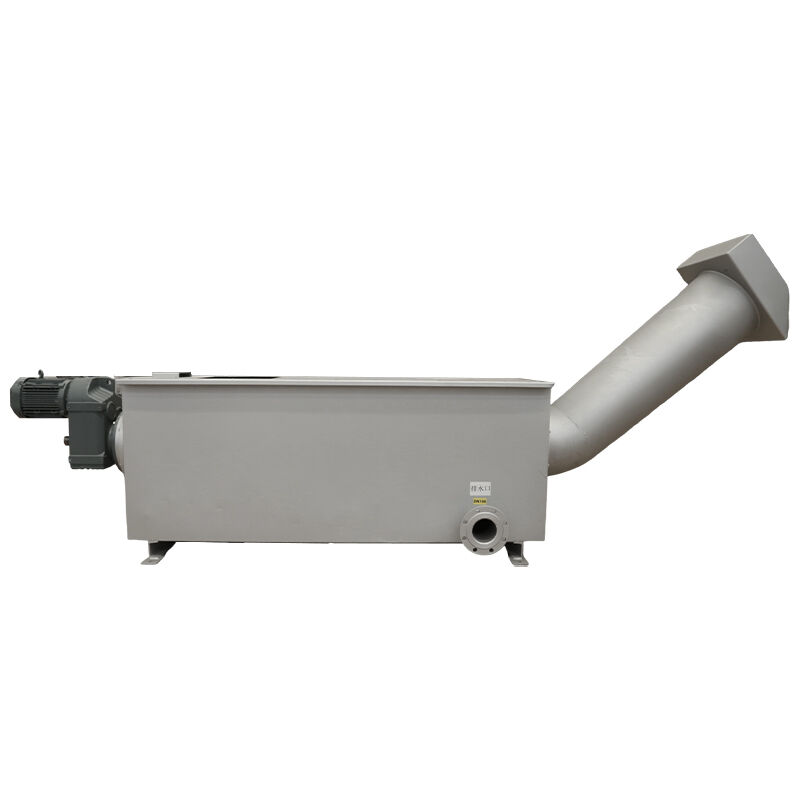

PLC Rapid High Drainage Sludge Dewatering Machine Perfect Pressing Stable Structure
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | CE,UL |
| Model Number | Sludge Dewatering Machine |
high drainage sludge dewatering machine
,PLC high drainage machine
,Stable high drainage machine
Rapid Drainage High Drainage Press Perfect Pressing Stable Structure
Brief Description
This high-drainage sludge dewatering machine is designed specifically for materials requiring low moisture content. Through optimized pressing chamber structure, it achieves rapid drainage and efficient solid-liquid separation. The machine operates smoothly and is suitable for deep dewatering of industrial waste such as food residue, biological sludge, and chemical filter cake, facilitating subsequent incineration, landfill, or resource utilization.
Product Overview
The High-Drainage Press is an advanced industrial dewatering system designed to efficiently separate solids from liquids in high-moisture applications. Utilizing intense mechanical pressure and optimized filtration technology, it maximizes water removal, reduces waste volume, and delivers consistently dry output—making it ideal for sectors such as food processing, wastewater management, agriculture, and recycling.
Working Principle
The high-drainage screw press consists of a drainage zone, a feeding zone, a screw conveying zone, and a discharge zone. Screenings enter the feeding zone, are compacted in the compaction zone by the screw press, and are then discharged. Waste liquid flows from the screen bars into a collection tank. The screw conveyor begins in the middle of a slotted pressure pipe and ends in the compression zone. The length of the screw conveyor is limited to a short outlet, ensuring the screenings are compressed within the pressure pipe. Conveying and compaction are accomplished by a high-strength steel screw, with the conveying length meeting design requirements. The screw press has sufficient rigidity to ensure no deformation. It dewaters effectively even when the slag is very wet. A flushing device automatically cleans the dewatering section.
Product Parameters
- Capacity: 1–50 tons/hour (customizable)
- Power Supply: 380V/50Hz or as required
- Moisture Reduction: Up to 40–60% reduction from initial feedstock
- Frame Material: Stainless steel 304/316
- Control System: PLC-based with touchscreen interface
| Model | GLSY-260 | GLSY-300 | GLSY-360 |
| Nominal Diameter(mm) | 200 | 260 | 300 |
| Screw RPM(r/min) | 5-10 | ||
| Handling Capacity(m3/h) | 1-3 | 5-6 | 6-9 |
| Moisture Content before treated | 85-95% | ||
| Moisture Content after treated | 40-45% | ||
| Motor Power(KW) | 1.5 | 2.2 | 2.2 |
Key Design & Performance Features
1. Meets landfill disposal criteria; lowers hauling costs; enables incineration/composting.
2. Achieves hazardous/non-hazardous waste reduction and stabilization for compliant, cost-effective disposal.
3. Efficiently separates liquid (leachate/grease) from solids, optimizing biogas yield or compost quality.
4. Enables rapid on-site dewatering for simplified sediment handling and transport.
5. Recovers nutrient-rich liquor and produces dry organic fertilizer base material.
Applications
The core application is in the municipal wastewater treatment industry, treating municipal sludge and screening residues; it is also widely applicable to the industrial wastewater treatment field, treating sludge generated during the production processes of industries such as electroplating, papermaking, chemicals, and textiles; in the organic waste treatment industry, it can effectively treat various organic wastes such as kitchen waste, agricultural waste, and livestock and poultry manure; in addition, it can also be applied to the dredging and sediment treatment industry, disposing of silt and dredged sludge in rivers and lakes, and is suitable for the biomass/biogas industry, treating biogas residue produced by anaerobic reactors.
Company Profile
WESUS is a leading manufacturer and total solution provider for advanced sewage and sludge treatment systems. Founded in Yixing, China in 2013, we offer reliable, cost-effective equipment and engineering services to global clients. Certified with ISO 9001, ISO 14001 and ISO 45001, we possess strong in-house R&D and manufacturing capabilities supported by a large production base, a professional technical team, patents and university cooperation. Our comprehensive product range includes screening, filtration, sludge dewatering, mixing, aeration and customized solutions. With end-to-end services from design to after-sales support and proven global project experience, we have earned wide recognition including national high-tech enterprise and 5-star after-sales certifications. Adhering to the philosophy of real innovation, excellence and win-win cooperation, WESUS is committed to providing smart, sustainable water treatment solutions for municipal and industrial clients worldwide.
FAQ
Q1: Are you a direct manufacturer? What certifications do you hold?
A: We are a direct manufacturer with our own production facilities and R&D team. We maintain full control over quality, cost, and delivery, and hold certifications including ISO 9001/14001 for our core products.
Q2: What types of collaboration models do you offer?
A: We provide flexible solutions:
- Equipment Supply: Standalone or packaged systems.
- Turnkey Solutions (EPC): Design, procurement, construction, and commissioning.
- Technical Cooperation: Process upgrades, operational maintenance support, and technical consulting.
Q3: How is after-sales service and support ensured?
A: We provide full lifecycle support:
- Warranty: 12–24 months on core equipment.
- Response: 7x24 remote support with fast on-site assistance when needed.
- Spare Parts: Genuine parts are stocked for long-term supply security.
- Maintenance: Annual Maintenance Contracts (AMC) are available to ensure long-term system efficiency.
Q4: What is your typical project execution process?
A: Our standardized workflow ensures efficiency and transparency:
1. Requirement Analysis → 2. Proposal & Quotation → 3. Design Finalization → 4. Production & Factory Testing → 5. Shipping & Installation → 6. Commissioning & Training → 7. After-sales Service.
Customer involvement is encouraged at key milestones.
Q5: Can you provide references or case studies?
A: We have extensive global project experience across municipal and various industrial sectors. We can provide detailed, anonymized case studies and client references upon request.
Q6: What are your payment terms and delivery lead times?
A: - Payment: We accept T/T and L/C, with standard industry progress payment terms.
- Lead Time: Standard equipment: 4–8 weeks. Large custom projects: 12–20 weeks.
A clear production schedule is provided upon contract signing.
Q7: How do you serve international clients?
A: We are experienced in international projects, arranging complete logistics (FOB, CIF, DDP, etc.) and providing full customs documentation. Our designs pre-consider compliance requirements in target markets.
Q8: Can you upgrade or retrofit existing systems?
A: Yes. We specialize in evaluating existing facilities and providing customized retrofit and expansion solutions to enhance performance and capacity with minimal investment and downtime.
Q9: How can we start a consultation?
A: Please contact our Sales Engineering team. To facilitate an efficient discussion, please have your treatment requirements, water quality data, and site information ready. We will provide a preliminary proposal and professional advice.
