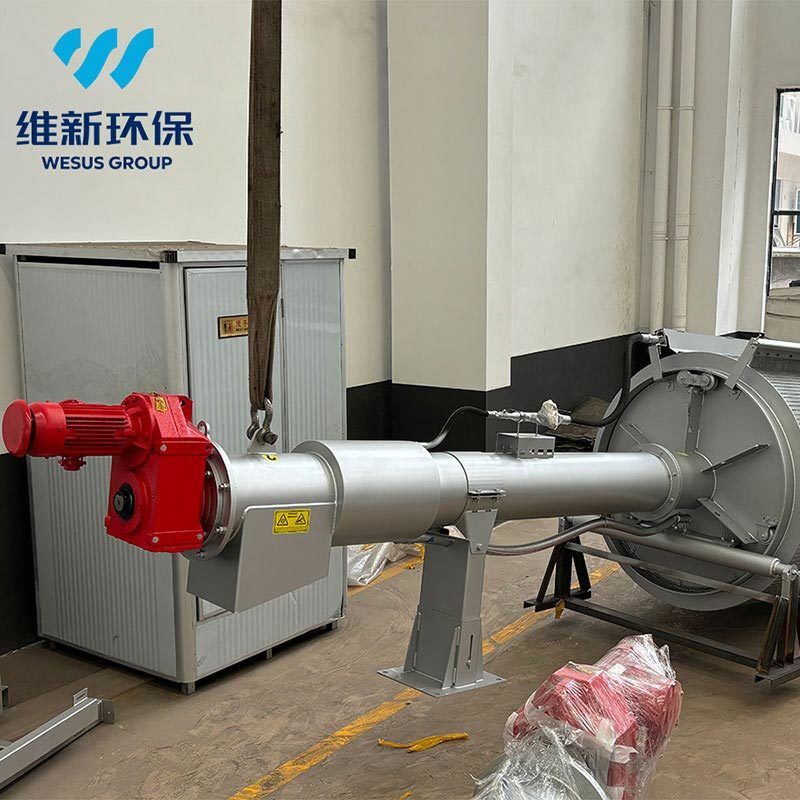

Anti Clogging Rotary Drum Fine Screen Drum Screen Wastewater 440-1650m3/H

Anti-clogging Rotary Drum Fine Screen Superior Materials Wide Operating Conditions

Brief Description

Specially optimized anti-clogging structure ensures smooth flow even with high-fiber and highly viscous impurities. Made from selected high-strength materials, balancing lightweight and durability. Suitable for treating industrial wastewater from slaughterhouses, starch processing plants, and bio-fermentation plants prone to entanglement, significantly reducing downtime risks.

Product Overview

Designed for superior efficiency and reliable operation, our Rotary Drum Fine Screen provides a holistic solids separation solution for rigorous wastewater applications. It effectively captures fine suspended materials including scum, short fibers and particles, generating clear effluent and compact, dewatered screenings to support smooth downstream processing.

Working Principle

Engineered for energy efficiency and environmental compliance, this system unifies interception, cleaning, lifting, and dewatering into a single automated workflow, reducing carbon footprint and waste disposal costs.
1. Interception
Mounted at a 35° ideal angle inside the channel, the drum rotates at a constant low-energy speed, using fine screen panels to intercept solid particles from incoming wastewater efficiently.
2. Cleaning
Continuous self-cleaning runs in sync with drum rotation, combining wear-resistant nylon brushes and high-pressure sprays to clear clogs without excessive water or energy consumption.
3. Lifting & Conveyance
Separated solids are guided into the internal screw conveyor, which lifts screenings smoothly with minimal power use, moving solids out of the water flow for further treatment.
4. Dewatering & Discharge
Screenings are compacted to reduce moisture and volume drastically, cutting disposal volume and costs. The closed automated process contains odors and adheres to eco-friendly operational norms.

Product Parameters

Key Design & Performance Features

*Integrated All-in-One Design: Combines screening, conveyance, washing, and dewatering in a single, compact footprint, saving space and simplifying installation.
*Fine Screening Capability: Effectively removes particles down to 1-6mm screen apertures, protecting sensitive downstream equipment (e.g., pumps, MBR membranes).
*Low-Headloss Operation: The 35-degree installation and optimized hydraulics minimize upstream water level impact.
*Automatic, Self-Cleaning: Ensures uninterrupted operation with minimal operator intervention, reducing labor costs.
*Effective Dewatering: Produces drier solids cake, reducing waste volume and subsequent handling or disposal costs.

Applications

Engineered to deliver precise separation in space-constrained projects, this unit features broad cross-industry applicability:
*Municipal: Functions as primary or fine screening stage in municipal wastewater treatment plants.
*Industrial: Ensures efficient pretreatment for effluents originating from food, pulp & paper, textile, and chemical industries.
*Specialized Projects: Suitable for shallow channels and small screen openings (1–6 mm), achieving high removal rates without excessive head loss.
