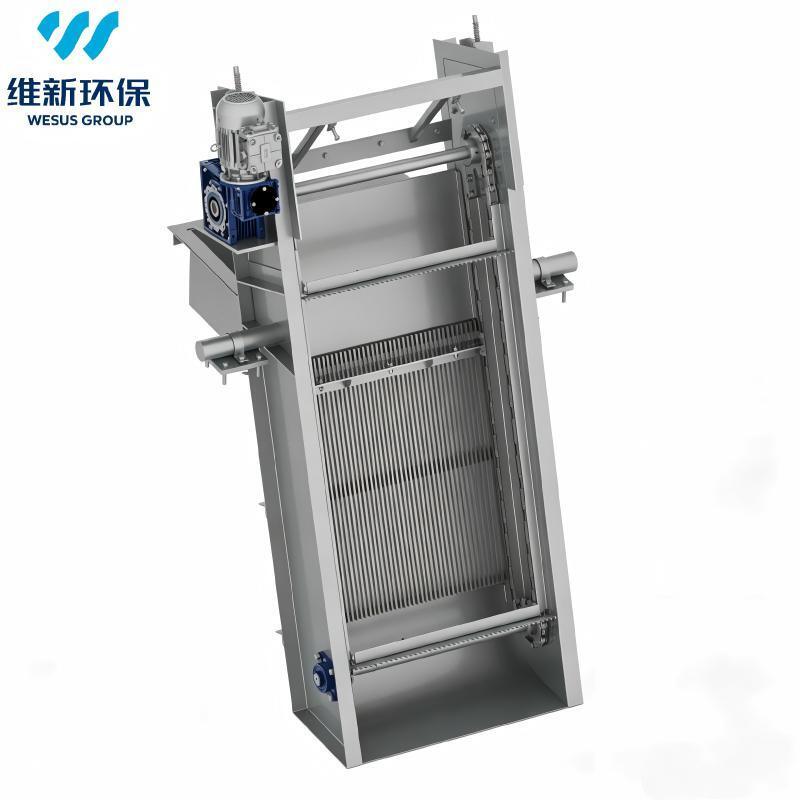

Multi-Rake Bar Screen for Wastewater Treatment

Multi-Rake Bar Screen for Wastewater Treatment

Brief Description

The Multi-Rake Bar Screen is a type of mechanical bar screen designed for preliminary wastewater treatment. It intercepts suspended solids, fibers, and other debris as water passes through the bar rack.

Driven by a mechanical system, the cleaning rakes remove and lift retained screenings for discharge. With a compact structure and a maintenance-friendly design, this equipment is suitable for municipal wastewater, industrial wastewater, and other water treatment applications. It helps reduce the amount of solid debris entering downstream treatment equipment.

Product Overview

The Multi-Rake Bar Screen generally consists of a frame, bar rack, rake cleaning mechanism, drive system, discharge section, and electrical control system, depending on the actual configuration. The drive system moves the cleaning rakes along a designated path to remove and lift accumulated screenings.

Available configurations can be selected according to channel dimensions, flow conditions, installation space, and project requirements. For projects requiring wastewater screening equipment, the screen can be incorporated into a suitable pretreatment system.

Protection devices and automatic controls can be provided according to the specified configuration to support safe operation and convenient maintenance.

Product Parameters

Note: The above specifications are for reference. Final parameters shall be confirmed according to the manufacturer's drawings, technical documentation, and project requirements.

Working Principle

As wastewater flows through the bar rack, larger solids are retained while water passes through the openings. When screenings accumulate, the screen can operate according to a preset program or control signal, depending on the control configuration.

The drive system moves the cleaning rakes along the designated path. The rakes remove retained debris and lift it to the discharge point. The collected screenings can then be transferred to a screw conveyor, screenings compactor, or other suitable handling equipment.

This mechanical rake bar screen design supports automatic or intermittent screenings removal, depending on the operating mode and control system. The wastewater bar screen rake mechanism works with the bar rack to clear accumulated solids and maintain the screening process.

Key Design & Perfpormance Features

1. Efficient Screening

The rake mechanism removes solids retained on the bar rack. Screening performance depends on bar spacing, rake configuration, operating speed, and site conditions.

2. Chain-Driven Operation

Where a chain drive is used, the drive system moves the cleaning rakes along the designated path to support consistent screenings removal.

3. Compact Design and Flexible Installation

Equipment dimensions and configuration can be selected according to channel dimensions, available space, and downstream screenings handling requirements.

4. Maintenance-Friendly Design

Rakes and other serviceable components can be inspected or replaced according to the equipment design, supporting routine maintenance.

5. Protection and Automatic Control

Overload protection and automatic control functions can be provided according to the specified configuration and project requirements.

6. Corrosion-Resistant Materials

Materials can be selected according to wastewater characteristics and the operating environment to help address corrosion risks.

Applications

The Multi-Rake Bar Screen is suitable for a range of wastewater and water treatment applications, subject to the required bar spacing, hydraulic conditions, and equipment configuration.

1. Municipal Wastewater Treatment Plants

Intercepts debris in incoming wastewater to help protect downstream treatment equipment.

2. Industrial Wastewater Treatment

Can be used in suitable industrial wastewater applications, depending on wastewater characteristics.

3. Wastewater Pumping Stations

Can be installed at pump station inlets to intercept larger solids before they enter pumps and pipelines.

4. Water Treatment Pretreatment Systems

Removes coarse solids before subsequent treatment processes.

5. Existing Facility Upgrades

Can be configured for equipment replacement or process upgrades according to existing channel dimensions and site conditions.

For projects involving different types of bar screens, the appropriate equipment should be selected according to screening requirements, bar spacing, flow rate, and installation conditions. Contact Weixin for product information and project-specific equipment selection.
