Low Speed Submersible Thruster with Polyurethane Blades for Oxidation Ditch Sewage Treatment

Low Speed Submersible Thruster with Polyurethane Blades for Oxidation Ditch Sewage Treatment

Brief Description

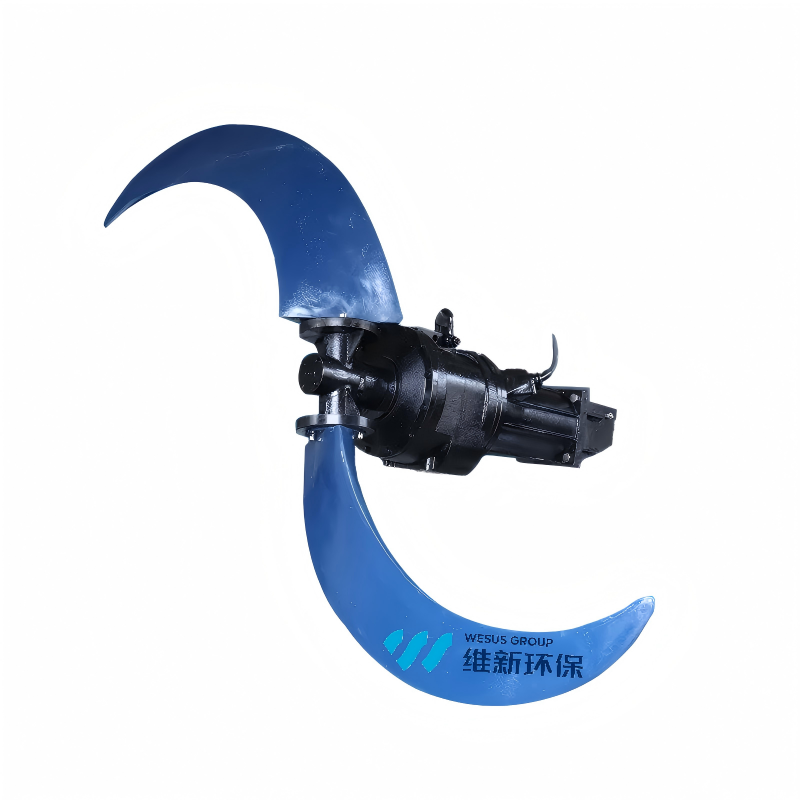

QJB low speed submersible thruster is equipped with large curved polyurethane two-blade impeller. Running at low rotating speed with big thrust, it creates continuous large-scale water circulation inside long oxidation ditches and large biochemical tanks, keeps activated sludge suspended evenly and avoids sludge sedimentation effectively. It is the core equipment for aerobic & anoxic pool circulating flow in municipal wastewater treatment plants.

Product Overview

This submersible low speed thruster adopts integrated cast iron submersible motor matched with planetary reduction gearbox, which outputs large torque at low speed. The oversized polyurethane propeller features light weight, high toughness, wear resistance and anti-corrosion performance. Compared with small submersible mixers, it covers much longer pushing distance and larger flow area, perfectly suitable for long strip oxidation ditch, large-scale sewage tanks. The fully underwater sealed IP68 structure supports 24-hour continuous submerged operation. Power range covers 1.5kW ~ 7.5kW with multiple propeller diameters optional.

Working Principle

The sealed submersible motor drives the reduction gearbox to decelerate and amplify torque, then pushes the large polyurethane blades to rotate slowly. Wide-range pushing flow is formed in the water body, which circulates the whole tank water continuously, suspends activated sludge all the time, cooperates with aeration system to improve sewage purification efficiency.

Product Parameters

Key Design & Performance Features

1. Large-size polyurethane curved blades: high toughness, anti-abrasion, anti-fiber winding, long service life.

2. Built-in planetary reducer: large output torque, ultra-low rotating speed, far pushing distance, low energy consumption.

3. Class F insulated submersible motor with IP68 waterproof rating; built-in anti-condensation structure for stable long-term underwater running.

4. Dual tungsten carbide mechanical sealing structure: effectively prevent sewage infiltration, reduce leakage failure rate.

5. Heavy-duty cast iron motor housing, strong anti-impact capacity, adapt to harsh sewage working conditions.

6. Complete set of installation accessories (lifting lugs, guide rail, hanging bracket), easy underwater installation and maintenance.

Applications

Mainly applied for oxidation ditch, large anoxic tank, anaerobic tank and aerobic tank in municipal wastewater treatment projects; Also widely used for aquaculture water circulation, industrial wastewater large pool circulating agitation. Operating conditions:

1. Maximum medium temperature ≤ 40℃

2. Applicable pH range: 5 ~ 9

3. Liquid density ≤ 1150 kg/m³

4. Maximum submergence depth: ≤ 20m
