Rotary Sludge Thickening Scraper for Square High Density Sedimentation Tank
| Place of Origin | CHINA |
| Brand Name | WESUS |
| Certification | ISO |
| Model Number | High Density Sedimentation Tank Sludge Scraper |
Rotary Sludge Scraper for Sedimentation Tank
,Square High Density Sludge Collection Equipment
,Wastewater Sludge Thickening Equipment
Rotary Sludge Thickening Scraper for Square High Density Sedimentation Tank
Brief Description
GMG Sludge Thickening Scraper is core equipment for square high density sedimentation tank clarification system. It achieves continuous sludge collection and in-tank thickening. Continuous operation of the scraper assembly facilitates sludge consolidation. Part of the thickened sludge is recirculated to the upstream reaction zone to maintain the high sludge concentration needed for homogeneous flocculation. Featuring high processing capacity, low moisture content of discharged sludge and compact layout, the unit is mounted on the top of sedimentation tank for convenient inspection. It efficiently collects settled sludge to stabilize clarification performance. Widely used in raw water purification, municipal wastewater treatment, industrial wastewater treatment and sludge treatment projects.
Product Overview
GMG series sludge thickening scraper is specially engineered for square high density sedimentation tanks. The whole machine mainly comprises drive unit, central drive shaft, connection frame, pull rods and sludge thickening assembly. The standard blade lifting height is 150 mm. Available specifications suit square tanks ranging from 6m×6m to 16m×16m. Wetted parts can be manufactured from carbon steel or stainless steel upon raw water quality requirements. Auxiliaries including electrical control cabinet can be supplied optionally as requested.
Working Principle
The top-mounted driving unit transmits torque downwards via the main shaft to drive the connecting frame and scraper assembly to perform rotary movement. Settled sludge on the tank bottom is continuously pushed to the central sludge hopper by scraping components. The integrated thickening assembly achieves in-tank sludge consolidation. Sludge collected in the central hopper is split into two streams: part of the thickened sludge is pumped back to the upstream flocculation zone to sustain the required sludge concentration for flocculation, and the surplus sludge is discharged out of the system. Clear supernatant rises and overflows as final clarified effluent.
Product Parameters
| Model | Tank Size A(m)×A(m) | Tank Depth H(m) | Lifting Height(mm) | d₁(mm) | d₂(mm) | h(mm) | Power(kW) |
| GMG-6 | 6×6 | 5 | 150 | 500 | 1000 | 700 | 0.75 |
| GMG-8 | 8×8 | ||||||
| GMG-10 | 10×10 | 6 | 1.1 | ||||
| GMG-12 | 12×12 | ||||||
| GMG-14 | 14×14 | 7 | 650 | 1300 | 1000 | ||
| GMG-16 | 16×16 |
Note: Customized dimensions and materials are available upon request.
Key Design & Performance Features
1. High surface loading rate and compact layout. With sludge recirculation and polymer dosing, surface loading can reach 15~25m³/(m²·h).
2. High concentration of discharged sludge. With sludge recirculation and flocculant addition, sludge concentration can achieve 20~50g/L.
3. Strong anti-interference capacity, less sensitive to fluctuation of influent water quality.
4. Low suspended solids in final effluent, stable clarification performance.

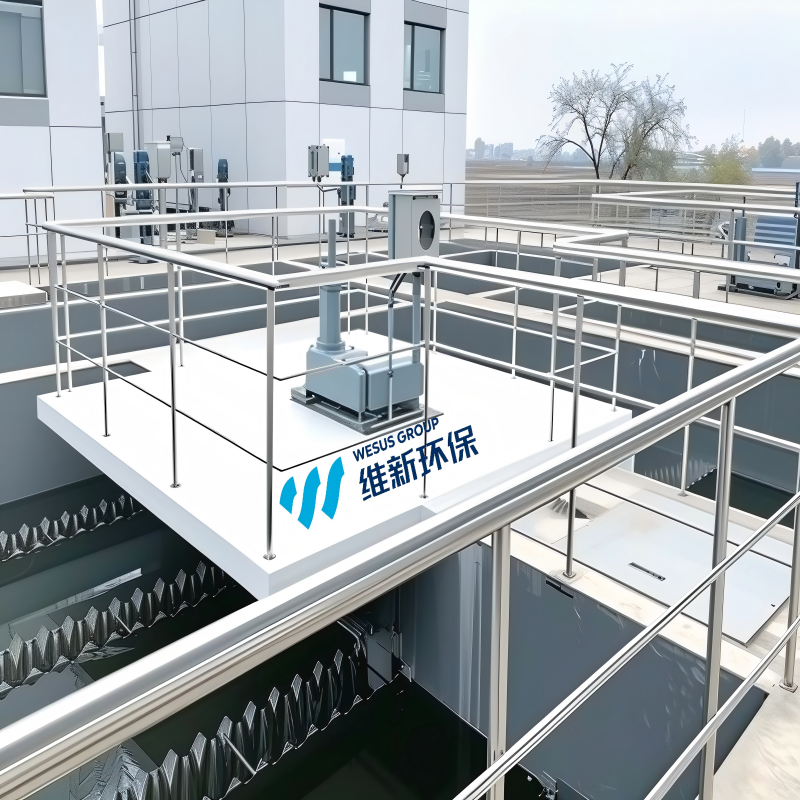

5. Top-mounted drive structure; inspection and routine maintenance can be completed above the water surface conveniently.
Applications
Designed for installation inside square high-density sedimentation tanks of raw water treatment plants, municipal wastewater treatment stations and various industrial wastewater treatment facilities. Widely applied to solid-liquid separation, flocculation clarification and sludge thickening processes for water supply, domestic sewage and industrial wastewater treatment projects.
Company Profile
WESUS is a leading manufacturer and total solution provider for advanced sewage and sludge treatment systems. Founded in Yixing, China in 2013, we offer reliable, cost-effective equipment and engineering services to global clients. Certified with ISO 9001, ISO 14001 and ISO 45001, we boast strong in-house R&D and manufacturing capabilities supported by a large production base, a professional technical team, patents and university cooperation. Our comprehensive product range includes screening, filtration, sludge dewatering, mixing, aeration and customized solutions. With end-to-end services from design to after-sales support and proven global project experience, we have earned wide recognition including national high-tech enterprise and 5-star after-sales certifications. Adhering to the philosophy of real innovation, excellence and win-win cooperation, WESUS is committed to providing smart, sustainable water treatment solutions for municipal and industrial clients worldwide.
FAQ
Q1: Are you a direct manufacturer? What certifications do you hold?
A: We are a direct manufacturer with our own production facilities and R&D team. We maintain full control over quality, cost, and delivery, and hold certifications including ISO 9001/14001 for our core products.
Q2: What types of collaboration models do you offer?
A: We provide flexible solutions:
- Equipment Supply: Standalone or packaged systems.
- Turnkey Solutions (EPC): Design, procurement, construction, and commissioning.
- Technical Cooperation: Process upgrades, operational maintenance support, and technical consulting.
Q3: How is after-sales service and support ensured?
A: We provide full lifecycle support:
- Warranty: 12–24 months on core equipment.
- Response: 7x24 remote support with fast on-site assistance when needed.
- Spare Parts: Genuine parts are stocked for long-term supply security.
- Maintenance: Annual Maintenance Contracts (AMC) are available to ensure long-term system efficiency.
Q4: What is your typical project execution process?
A: Our standardized workflow ensures efficiency and transparency:
1. Requirement Analysis → 2. Proposal & Quotation → 3. Design Finalization → 4. Production & Factory Testing → 5. Shipping & Installation → 6. Commissioning & Training → 7. After-sales Service.
Customer involvement is encouraged at key milestones.
Q5: Can you provide references or case studies?
A: We have extensive global project experience across municipal and various industrial sectors. We can provide detailed, anonymized case studies and client references upon request.
Q6: What are your payment terms and delivery lead times?
A: - Payment: We accept T/T and L/C, with standard industry progress payment terms.
- Lead Time: Standard equipment: 4–8 weeks. Large custom projects: 12–20 weeks.
A clear production schedule is provided upon contract signing.
Q7: How do you serve international clients?
A: We are experienced in international projects, arranging complete logistics (FOB, CIF, DDP, etc.) and providing full customs documentation. Our designs pre-consider compliance requirements in target markets.
Q8: Can you upgrade or retrofit existing systems?
A: Yes. We specialize in evaluating existing facilities and providing customized retrofit and expansion solutions to enhance performance and capacity with minimal investment and downtime.
Q9: How can we start a consultation?
A: Please contact our Sales Engineering team. To facilitate an efficient discussion, please have your treatment requirements, water quality data, and site information ready. We will provide a preliminary proposal and professional advice.
